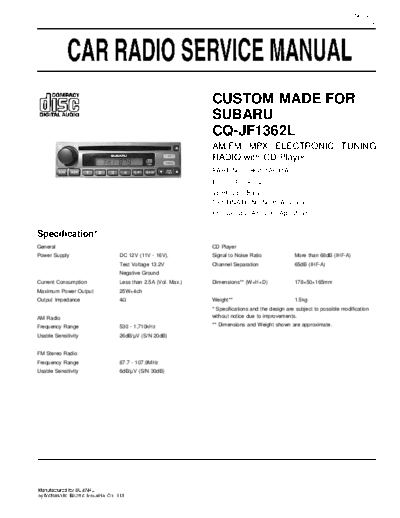

Image preview - the first page of the document
>> Download CQ-JF1362L documenatation <<Text preview - extract from the document ORDER No. 6085
I0
CUSTOM MADE FOR
SUBARU
CQ-JF1362L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
PART No. : 86201AE41A
ID CODE : P132
VEHICLE : Baja
DESTINATION : North America
PRODUCED AFTER : Apr. 2003
Specification*
General CD Player
Power Supply DC 12V (11V - 16V), Signal to Noise Ratio More than 68dB (IHF-A)
Test Voltage 13.2V Channel Separation 65dB (IHF-A)
Negative Ground
Current Consumption Less than 2.5A (Vol. Max.) Dimensions** (W
