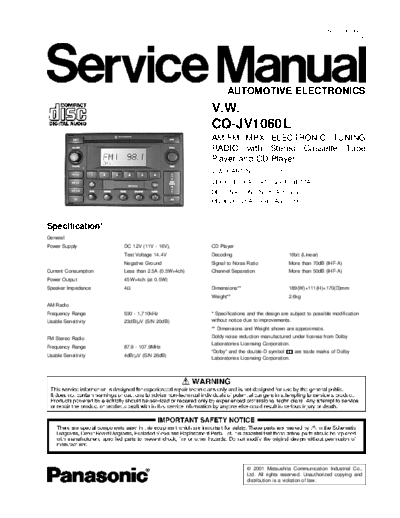

>> Download VW CQ-JV1060L documenatation <<Text preview - extract from the document ORDER No. AED0106025
I0
AUTOMOTIVE ELECTRONICS
V.W.
CQ-JV1060L
AM/FM MPX ELECTRONIC TUNING
RADIO with Stereo Cassette Tape
Player and CD Player
V.W. PART No. : 3B7 035 180
VEHICLE : PASSAT, GOLF, JETTA
DESTINATION : North America
PRODUCED AFTER : Aug., 2001
Specification*
General
Power Supply DC 12V (11V - 16V), CD Player
Test Voltage 14.4V Decoding 16bit (Linear)
Negative Ground Signal to Noise Ratio More than 70dB (IHF-A)
Current Consumption Less than 2.5A (0.5W
