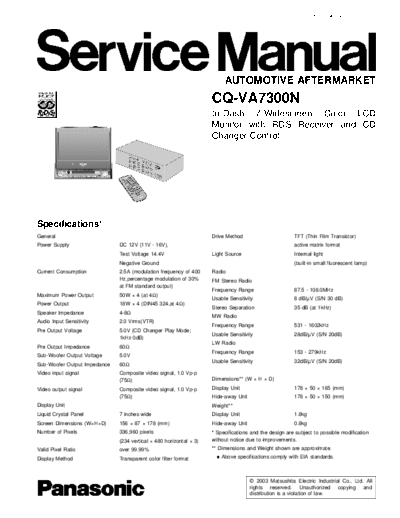

>> Download Panasonic_CQ-VA7300N.part2 documenatation <<Text preview - extract from the document ORDER NO.ACED030561C8
AUTOMOTIVE AFTERMARKET
CQ-VA7300N
In-Dash 7"Widescreen Color LCD
Monitor with RDS Receiver and CD
Changer Control
Specifications*
General Drive Method TFT (Thin Film Transistor)
Power Supply DC 12V (11V - 16V), active matrix format
Test Voltage 14.4V Light Source Internal light
Negative Ground (built-in small fluorescent lamp)
Current Consumption 2.5A (modulation frequency of 400 Radio
Hz,percentage modulation of 30% FM Stereo Radio
at FM standard output)
Frequency Range 87.5 - 108.0MHz
Maximum Power Output 50W
