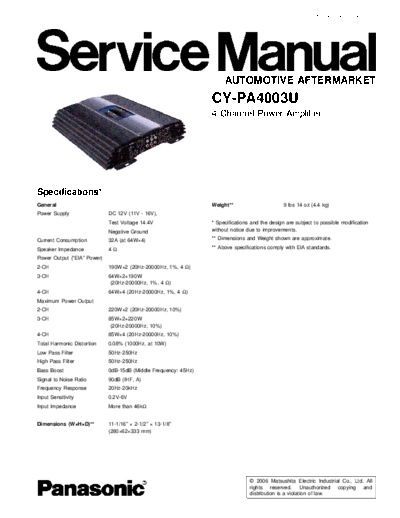

cy_pa4003u_641


>> Download cy_pa4003u_641 documenatation <<

Text preview - extract from the document
                                                                                                         ORDER NO. ACED060837C7
                                                                                                                             C1




                                                                      AUTOMOTIVE AFTERMARKET
                                                                 CY-PA4003U
                                                                 4 Channel Power Amplifier




Specifications*
General                                                          Weight**                       9 lbs 14 oz (4.4 kg)
Power Supply                 DC 12V (11V - 16V),
                             Test Voltage 14.4V                  * Specifications and the design are subject to possible modification
                             Negative Ground                     without notice due to improvements.

Current Consumption          32A (at 64W
