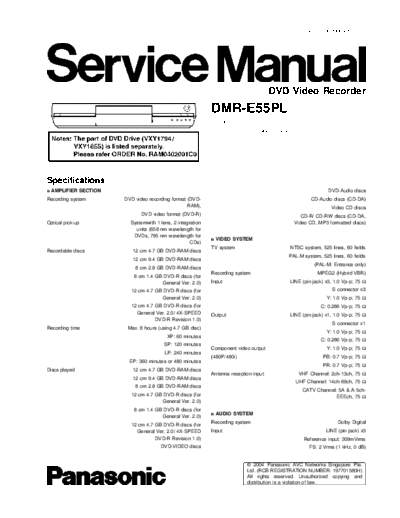

Image preview - the first page of the document
>> Download Panasonic-DMR-E55PL-SM documenatation <<
Text preview - extract from the document
ORDER NO.MD0405181C3
DVD Video Recorder
DMR-E55PL
Colour
(S).......................Silver Type
Specifications
n AMPLIFIER SECTION DVD-Audio discs
Recording system DVD video recording format (DVD- CD-Audio discs (CD-DA)
RAM), Video CD discs
DVD video format (DVD-R) CD-R/ CD-RW discs (CD-DA,
Optical pick-up Systemwith 1 lens, 2 integration Video CD, MP3 formatted discs)
units (658 nm wavelength for
DVDs, 795 nm wavelength for
n VIDEO SYSTEM
CDs)
TV system NTSC system, 525 lines, 60 fields
Recordable discs 12 cm 4.7 GB DVD-RAM discs
PAL-M system, 525 lines, 60 fields
12 cm 9.4 GB DVD-RAM discs
(PAL-M: Entrance only)
8 cm 2.8 GB DVD-RAM discs
Recording system MPEG2 (Hybrid VBR)
8 cm 1.4 GB DVD-R discs (for
General Ver. 2.0) Input LINE (pin jack) x3, 1.0 Vp-p; 75
12 cm 4.7 GB DVD-R discs (for S connector x3
General Ver. 2.0) Y: 1.0 Vp-p; 75
12 cm 4.7 GB DVD-R discs (for C: 0.286 Vp-p; 75
General Ver. 2.0/ 4X-SPEED Output LINE (pin jack) x1, 1.0 Vp-p; 75
DVD-R Revision 1.0)
S connector x1
Recording time Max. 8 hours (using 4.7 GB disc)
Y: 1.0 Vp-p; 75
XP: 60 minutes
C: 0.286 Vp-p; 75
SP: 120 minutes
Component video output Y: 1.0 Vp-p; 75
LP: 240 minutes
(480P/480i) PB: 0.7 Vp-p; 75
EP: 360 minutes or 480 minutes
PR: 0.7 Vp-p; 75
Discs played 12 cm 4.7 GB DVD-RAM discs
Antenna reception input VHF Channel: 2ch-13ch, 75
12 cm 9.4 GB DVD-RAM discs
UHF Channel: 14ch-69ch, 75
8 cm 2.8 GB DVD-RAM discs
CATV Channel: 5A & A-5ch-
12 cm 4.7 GB DVD-R discs (for EEEch, 75
General Ver. 2.0)
8 cm 1.4 GB DVD-R discs (for
n AUDIO SYSTEM
General Ver. 2.0)
Recording system Dolby Digital
12 cm 4.7 GB DVD-R discs (for
General Ver. 2.0/ 4X-SPEED Input LINE (pin jack) x3
DVD-R Revision 1.0) Reference input: 309mVrms
DVD-VIDEO discs FS: 2 Vrms (1 kHz, 0 dB)
