SCART P.C.B.
Integrated Circuit PS3901 A-2 C C3901 C-1 F C3922 B-4 F C3956 B-6 F R3912 C-8 F R3962 C-3 F R3986 D-8 F
IC3901 B-8 F PS3902 A-4 C C3902 C-2 C C3923 B-7 F C3957 C-6 F R3913 D-8 F R3963 B-3 F R3987 A-5 F
IC3902 B-2 F PS3903 A-8 C C3903 C-2 C C3924 B-7 C C3958 C-6 F R3914 D-8 F R3967 B-3 F R3988 A-6 F
Transistor Diode C3904 C-2 C C3925 C-4 F C3959 C-5 F R3919 D-8 F R3968 B-3 F R3989 A-5 F
Q3901 B-2 F D3901 C-7 C C3905 C-2 C C3928 C-9 C C3960 C-5 F R3921 B-4 F R3969 B-3 F R3990 A-5 F
Q3905 B-3 F D3903 B-6 F C3906 C-2 C C3929 C-9 C C3961 C-5 F R3922 B-5 F R3970 B-3 F R3991 C-5 F
Q3906 B-3 F D3905 A-3 C C3907 C-2 C C3930 C-9 F C3962 C-6 F R3923 B-6 F R3972 C-9 F R3992 C-6 F
Q3908 B-6 F D3906 A-3 C C3908 C-2 C C3931 C-9 C Resistor R3924 C-6 C R3973 C-9 F R3993 C-6 F
Q3909 B-6 F Coil C3909 B-3 C C3932 D-9 C R3901 B-3 F R3925 B-5 F R3975 C-7 F R3994 C-5 F
Q3910 B-6 F LB3901 B-2 F C3910 B-9 C C3933 D-8 C R3902 B-3 F R3926 B-5 F R3976 C-8 F
Transistor-resistor LB3907 B-6 F C3911 B-8 C C3934 C-8 F R3903 B-3 F R3927 B-4 F R3977 A-6 F
QR3908 B-3 F LB3908 B-5 F C3914 C-7 C C3935 C-8 C R3904 C-9 F R3928 B-3 F R3978 A-6 F
QR3909 A-6 F LB3911 C-5 F C3915 B-7 C C3938 C-8 F R3905 B-2 F R3929 C-6 F R3979 B-7 F
QR3913 B-3 F LB3912 C-6 F C3916 B-8 C C3939 C-8 F R3906 B-2 F R3930 C-6 F R3980 B-7 F
QR3914 A-1 F LB3913 C-6 F C3917 A-8 C C3951 B-5 F R3907 B-2 F R3931 C-5 F R3981 B-6 F
QR3915 A-1 F LB3922 B-1 F C3918 A-7 C C3952 B-5 F R3908 B-9 F R3932 C-5 F R3982 B-6 F
Connector LB3923 B-1 F C3919 B-7 C C3953 A-5 F R3909 B-9 F R3933 C-3 F R3983 B-6 F
JK3904 B-5 C LB3925 D-8 F C3920 B-8 F C3954 A-6 F R3910 D-9 F R3934 C-3 F R3984 B-6 F
JK3905 C-5 C Capacitor C3921 B-7 C C3955 B-5 F R3911 C-8 F R3935 C-4 F R3985 D-9 F
ADDRESS INFORMATION
C......COMPONENT SIDE
SCART P.C.B. F......FOIL SIDE
D
C
B
A
(COMPONENT SIDE) DMR-E100EB/EG

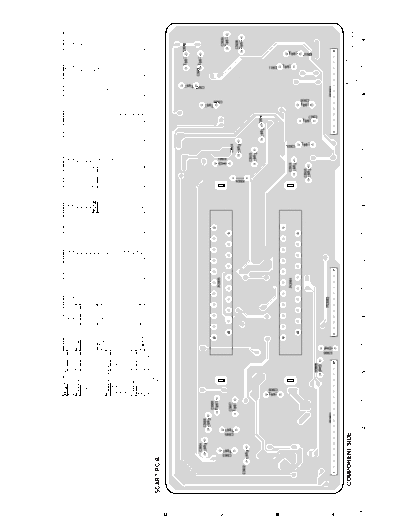

Scart P.C.B. (Component Side)
(REP3533A)
