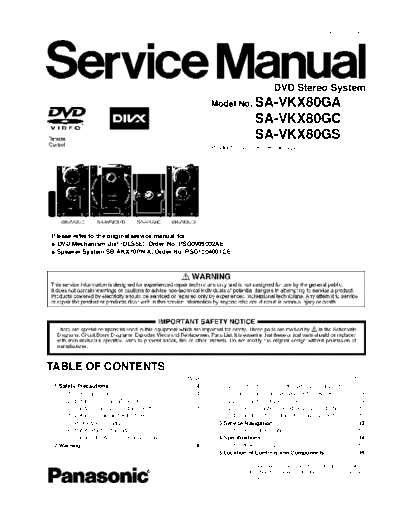

Image preview - the first page of the document



>> Download panasonic_sa_vkx80ga_sa_vkx80gc_sa_vkx80gs documenatation <<

Text preview - extract from the document

                                                                                                                                      PSG1011003CE




                                                                                                           DVD Stereo System
                                                                              Model No. SA-VKX80GA
                                                                                                 SA-VKX80GC
                                                                                                 SA-VKX80GS
                                                                              Product Color: (K)...Black Type




Please refer to the original service manual for:
  DVD Mechanism Unit (DLS6E), Order No: PSG0909002AE
  Speaker System SB-AKX70PN-K, Order No: PSG1004001CE




TABLE OF CONTENTS
                                                                    PAGE                                                                         PAGE
 1 Safety Precautions----------------------------------------------- 4             2.1. Prevention of Electrostatic Discharge (ESD)
    1.1. General Guidelines---------------------------------------- 4                   to Electrostatic Sensitive (ES) Devices---------------8
    1.2. Before Use (For GA/GS only) -------------------------- 4                  2.2. Precaution of Laser Diode -------------------------------9
    1.3. Caution For Fuse Replacement------------------------ 4                    2.3. Service caution based on Legal restrictions ------ 10
    1.4. Before Repair and Adjustment ------------------------- 5                  2.4. Handling Precautions for Traverse Unit ------------ 11
    1.5. Protection Circuitry ---------------------------------------- 5        3 Service Navigation --------------------------------------------- 13
    1.6. Safety Parts Information --------------------------------- 5              3.1. Service Information -------------------------------------- 13
    1.7. Caution for AC Cord (For GS Only)------------------- 7                 4 Specifications ---------------------------------------------------- 14
 2 Warning -------------------------------------------------------------- 8        4.1. Others (Licenses) ---------------------------------------- 15
                                                                                5 Location of Controls and Components------------------ 16
