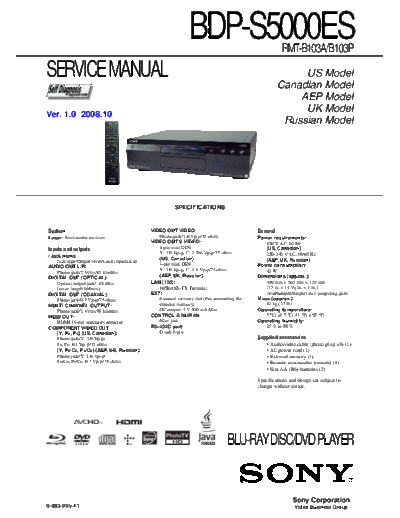

Image preview - the first page of the document
>> Download hfe_sony_bdp-s5000es_service_en documenatation <<
Text preview - extract from the document
BDP-S5000ES RMT-B103A/B103P
SERVICE MANUAL US Model
Canadian Model
AEP Model
Ver. 1.0 2008.10
UK Model
Russian Model
SPECIFICATIONS
System VIDEO OUT VIDEO: General
Laser: Semiconductor laser Phono jack/1.0 Vp-p/75 ohms Power requirements:
VIDEO OUT S VIDEO: 120 V AC, 60 Hz
Inputs and outputs 4-pin mini DIN/ (US, Canadian)
Y: 1.0 Vp-p, C: 0.286 Vp-p/75 ohms 220-240 V AC, 50/60 Hz
(Jack name:
(US, Canadian) (AEP, UK, Russian)
Jack type/Output level/Load impedance)
4-pin mini DIN/ Power consumption:
AUDIO OUT L/R:
Y: 1.0 Vp-p, C: 0.3 Vp-p/75 ohms 42 W
Phono jack/2 Vrms/10 kilohms
DIGITAL OUT (OPTICAL): (AEP, UK, Russian) Dimensions (approx.):
