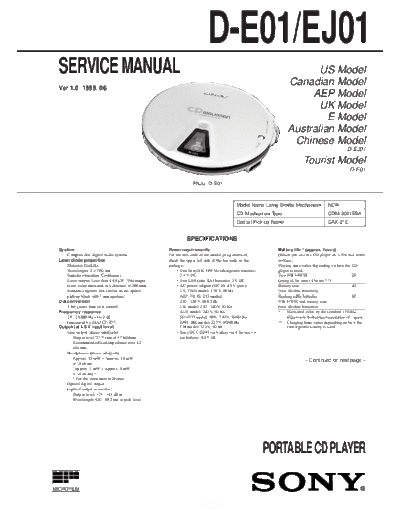

Image preview - the first page of the document



>> Download D-E01_EJ01 documenatation <<

Text preview - extract from the document

                                                                            D-E01/EJ01
  SERVICE MANUAL                                                                                                          US Model
  Ver 1.0 1999. 06
                                                                                                                   Canadian Model
                                                                                                                        AEP Model
                                                                                                                          UK Model
                                                                                                                            E Model
                                                                                                                   Australian Model
                                                                                                                    Chinese Model
                                                                                                                                                    D-EJ01

                                                                                                                           Tourist Model
                                                                                                                                                     D-E01

                                                                    Photo: D-E01



                                                                                            Model Name Using Similar Mechanism           NEW
                                                                                            CD Mechanism Type                            CDM-3021EBA
                                                                                            Optical Pick-up Name                         DAX-21E


                                                                SPECIFICATIONS
  System                                               Power requirements                                    Battery life * (approx. hours)
      Compact disc digital audio system                For the area code of the model you purchased,         (When you use the CD player on a flat and stable
  Laser diode properties                               check the upper left side of the bar code on the      surface.)
      Material: GaAlAs                                 package.                                              Playing time varies depending on how the CD
      Wavelength:  = 780 nm
