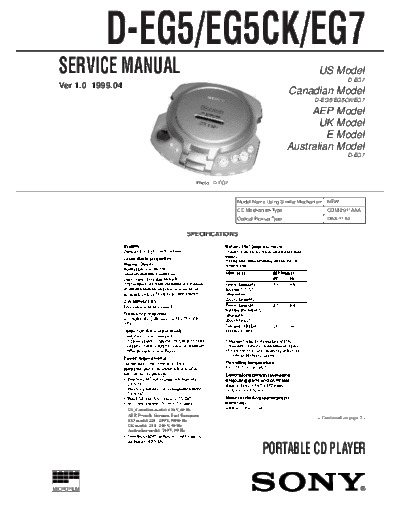

Image preview - the first page of the document



>> Download D-EG5_X documenatation <<

Text preview - extract from the document

             D-EG5/EG5CK/EG7
  SERVICE MANUAL                                                                                     US Model
                                                                                                                   D-EG7
  Ver 1.0 1999.04
                                                                                            Canadian Model
                                                                                                    D-EG5/EG5CK/EG7

                                                                                                 AEP Model
                                                                                                   UK Model
                                                                                                     E Model
                                                                                            Australian Model
                                                                                                                   D-EG7



                                                     Photo : D-EG7


                                                                     Model Name Using Similar Mechanism   NEW
                                                                     CD Mechanism Type                    CDM-2911AAA
                                                                     Optical Pick-up Type                 DAX-11A2


                                                SPECIFICATIONS




                    US, Canadian model: 120 V, 60 Hz
                    AEP, French, German, East European,
                    E13 model:220 - 230 V, 50/60 Hz
