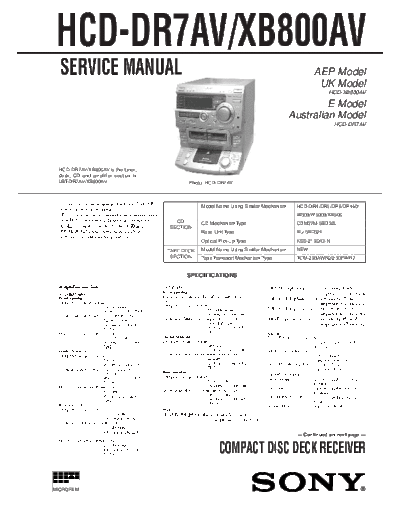

Image preview - the first page of the document
>> Download HCD-DR7AV_X documenatation <<
Text preview - extract from the document
HCD-DR7AV/XB800AV
SERVICE MANUAL AEP Model
UK Model
HCD-XB800AV
E Model
Australian Model
HCD-DR7AV
HCD-DR7AV/XB800AV is the tuner,
deck, CD and amplifier section in
LBT-DR7AV/XB800AV. Photo: HCD-DR7AV
Model Name Using Similar Mechanism HCD-DR4/DR5/DR6/DR440/
W300/W5000/XB500
CD CD Mechanism Type CDM37M-5BD32L
SECTION
Base Unit Type BU-5BD32L
Optical Pick-up Type KSS-213D/Q-N
TAPE DECK Model Name Using Similar Mechanism NEW
SECTION Tape Transport Mechanism Type TCM-230AWR2/230PWR2
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
MICROFILM
