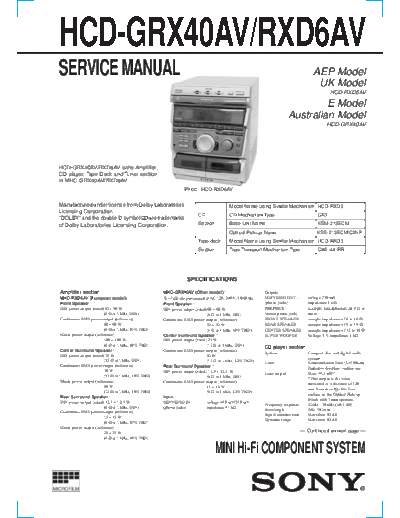

Image preview - the first page of the document
>> Download HCD-GRX40AV_RXD6AV documenatation <<
Text preview - extract from the document
HCD-GRX40AV/RXD6AV
SERVICE MANUAL AEP Model
UK Model
HCD-RXD6AV
E Model
Australian Model
HCD-GRX40AV
HCD-GRX40AV/RXD6AV is the Amplifier,
CD player, Tape Deck and Tuner section
in MHC-GRX40AV/RXD6AV.
Photo : HCD-RXD6AV
Manufactured under license from Dolby Laboratories Model Name Using Similar Mechanism HCD-RXD3
Licensing Corporation.
CD CD Mechanism Type CX3
"DOLBY" and the double-D symbol a are trademarks
of Dolby Laboratories Licensing Corporation. Section Base Unit Name KSM-213ECM
Optical Pick-up Name KSS-213ECM/C2NP
Tape deck Model Name Using Similar Mechanism HCD-RXD3
Section Tape Transport Mechanism Type CWL-44-RR
SPECIFICATIONS
Amplifier section MHC-GRX40AV (Other model): Outputs
MHC-RXD6AV (European model): The following measured at AC 120, 240 V, 50/60 Hz MD/VIDEO OUT : voltage 250 mV
Front Speaker : Front Speaker : (phono jacks) impedance 1 k
DIN power output (rated)50 + 50 W DIN power output (rated)60 + 60 W PHONES : accepts headphones of 8 or
(6 at 1 kHz, DIN) (6 at 1 kHz, DIN) (stereo phone jack) more
Continuous RMS power output (reference) Continuous RMS power output (reference) FRONT SPEAKER : accepts impedance of 6 to 16
60 + 60 W 70 + 70 W REAR SPEAKER : accepts impedance of 6 to 16
(6 at 1 kHz, 10% THD) (6 at 1 kHz, 10% THD) CENTER SPEAKER : accepts impedance of 12 to 16
Music power output (reference) Center Surround Speaker : SUPER WOOFER : Voltage 1 V, impedance 1 k
100 + 100 W DIN power output (rated) 25 W
(6 at 1 kHz, 10% THD) (12 at 1 kHz, DIN) CD player section
Center Surround Speaker : Continuous RMS power output (reference)
System Compact disc and digital audio
DIN power output (rated) 25 W 30 W
system
(12 at 1 kHz, DIN) (12 at 1 kHz, 10% THD)
Laser Semiconductor laser (=780nm)
Continuous RMS power output (reference) Rear Surround Speaker :
Emission duration: continuous
30 W DIN power output (rated) 12.5 + 12.5 W
Laser output Max. 44.6 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
