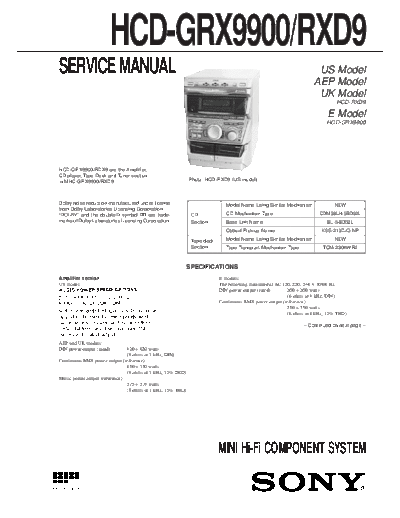

Image preview - the first page of the document
>> Download HCD-GRX9900_RXD9 documenatation <<
Text preview - extract from the document
HCD-GRX9900/RXD9
SERVICE MANUAL US Model
AEP Model
UK Model
HCD-RXD9
E Model
HCD-GRX9900
HCD-GRX9900/RDX9 are the Amplifier,
CD player, Tape Deck and Tuner section
in MHC-GRX9900/RXD9. Photo: HCD-RXD9 (US model)
Dolby noise reduction manufactured under license Model Name Using Similar Mechanism NEW
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol a are trade- CD CD Mechanism Type CDM38LH-5BD32L
marks of Dolby Laboratories Licensing Corporation. Section Base Unit Name BU-5BD32L
Optical Pick-up Name KSS-213D/Q-NP
Tape deck Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type TCM-230AWR2
SPECIFICATIONS
Amplifier section E models:
US model: The following measured at AC 120, 220, 240 V 50/60 Hz
DIN power output (rated) 200 + 200 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
250 + 250 watts
(6 ohms at 1 kHz, 10% THD)
