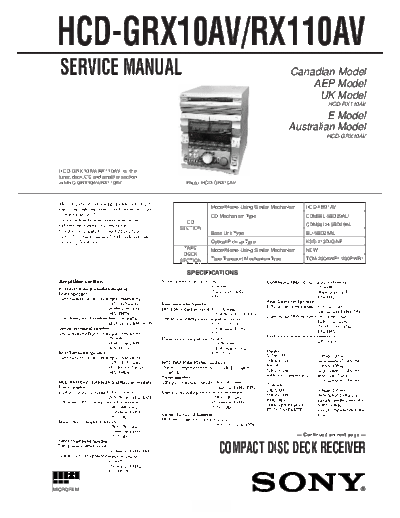

Image preview - the first page of the document
>> Download HCD-GRX10AV_RX110AV documenatation <<
Text preview - extract from the document
HCD-GRX10AV/RX110AV
SERVICE MANUAL Canadian Model
AEP Model
UK Model
HCD-RX110AV
E Model
Australian Model
HCD-GRX10AV
HCD-GRX10AV/RX110AV is the
tuner, deck, CD and amplifier section
in MHC-GRX10AV/RX110AV. Photo: HCD-GRX10AV
Model Name Using Similar Mechanism HCD-H991AV
CD Mechanism Type CDM38L-5BD29AL/
CD CDM38LH-5BD29AL
SECTION
Base Unit Type BU-5BD29AL
Optical Pick-up Type KSS-213D/Q-NP
TAPE Model Name Using Similar Mechanism NEW
DECK
SECTION Tape Transport Mechanism Type TCM-230AWR1/230PWR1
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
