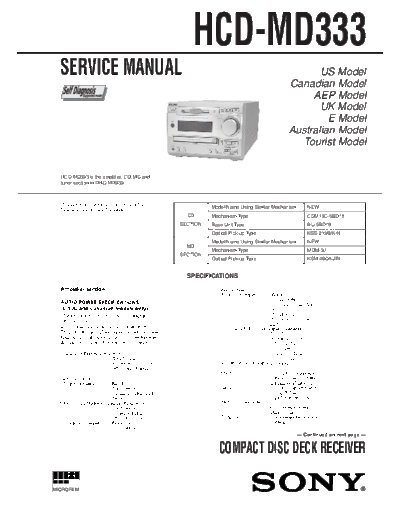

Image preview - the first page of the document
>> Download HCD-MD333 documenatation <<
Text preview - extract from the document
HCD-MD333
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Tourist Model
HCD-MD333 is the amplifier, CD, MD and
tuner section in DHC-MD333.
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM13C-5BD19
SECTION Base Unit Type BU-5BD19
Optical Pick-up Type KSS-213B/K-N
Model Name Using Similar Mechanism NEW
MD
Mechanism Type MDM-3J
SECTION
Optical Pick-up Type KSM-260A-JIN
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
