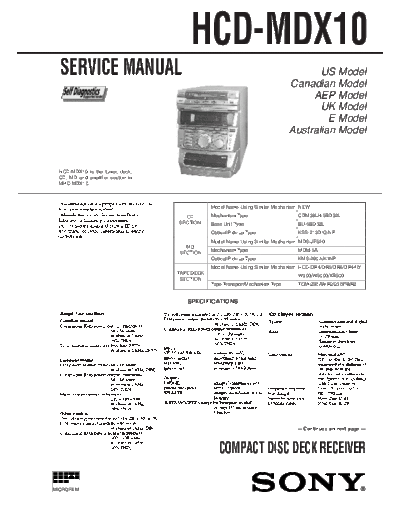

Image preview - the first page of the document
>> Download HCD-MDX10 documenatation <<
Text preview - extract from the document
HCD-MDX10
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
HCD-MDX10 is the tuner, deck,
CD, MD and amplifier section in
MHC-MDX10.
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM38LH-5BD32L
SECTION Base Unit Type BU-5BD32L
Optical Pick-up Type KSS-213D/Q-NP
Model Name Using Similar Mechanism MDS-JE520
MD
Mechanism Type MDM-5A
SECTION
Optical Pick-up Type KMS-260A/K1NP
Model Name Using Similar Mechanism HCD-DR4/DR5/DR6/DR440/
TAPE DECK
W300/W5000/XB500
SECTION
Tape Transport Mechanism Type TCM-230AWR2/230PWR2
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
MICROFILM
