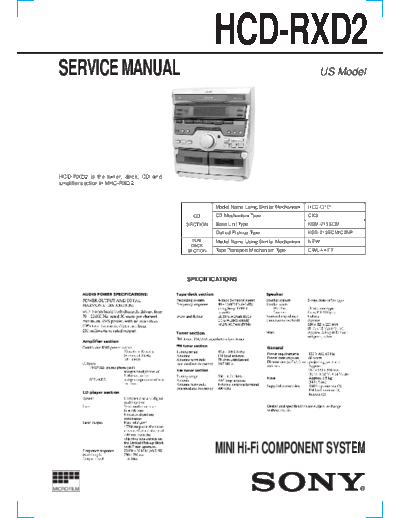

Image preview - the first page of the document
>> Download HCD-RXD2 documenatation <<
Text preview - extract from the document
HCD-RXD2
SERVICE MANUAL US Model
HCD-RXD2 is the tuner , dec k, CD and
amplifier section in MHC-RXD2.
Model Name Using Similar Mechanism HCD-G101
CD CD Mechanism Type CX3
SECTION Base Unit Type KSM-213ECM
Optical Pick-up Type KSS-213ECM/C2NP
TAPE Model Name Using Similar Mechanism NEW
DECK
SECTION Tape Transport Mechanism Type CWL-44-FF
SPECIFICATIONS
MINI Hi-Fi COMPONENT SYSTEM
MICROFILM
HCD-RXD2
