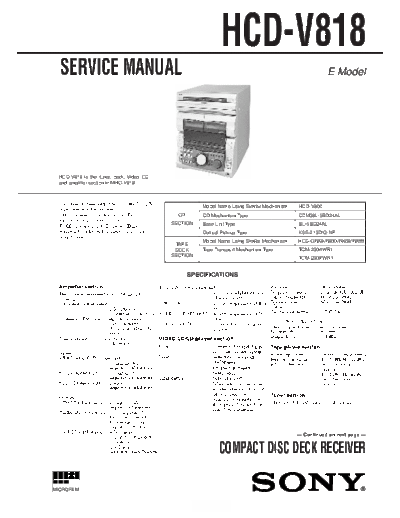

HCD-V818
SERVICE MANUAL E Model
HCD-V818 is the tuner, deck, Video CD
and amplifier section in MHC-V818.
Model Name Using Similar Mechanism HCD-V800
CD CD Mechanism Type CDM38L-5BD24AL
SECTION Base Unit Type BU-5BD24AL
Optical Pick-up Type KSS-213D/Q-NP
Model Name Using Similar Mechanism HCD-GRX8/R800/RX88/RX99
TAPE
DECK Tape Transport Mechanism Type TCM-230AWR1
SECTION
TCM-230PWR1
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
