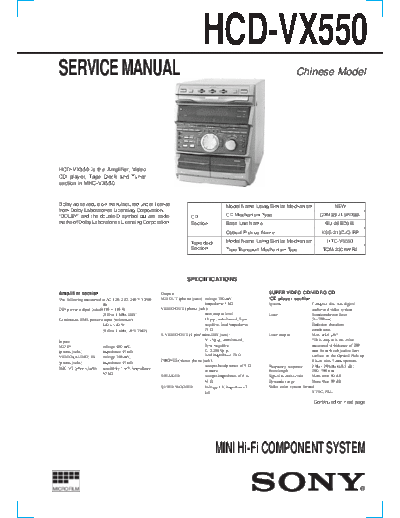

Image preview - the first page of the document



>> Download HCD-VX550 documenatation <<

Text preview - extract from the document

                                                                             HCD-VX550
  SERVICE MANUAL                                                                                                          Chinese Model




  HCD-VX550 is the Amplifier, Video
  CD player, Tape Deck and Tuner
  section in MHC-VX550.


  Dolby noise reduction manufactured under license                                        Model Name Using Similar Mechanism                    NEW
  from Dolby Laboratories Licensing Corporation.
  "DOLBY" and the double-D symbol a are trade-                         CD                 CD Mechanism Type                            CDM38LH-5BD36L
  marks of Dolby Laboratories Licensing Corporation.                   Section            Base Unit Name                                   BU-26BD36L
                                                                                          Optical Pick-up Name                          KSS-213D/Q-RP

                                                                       Tape deck          Model Name Using Similar Mechanism                HTC-V5550
                                                                       Section            Tape Transport Mechanism Type                  TCM-230AWR2




                                                                     SPECIFICATIONS

  Amplifier section                                     Outputs                                            SUPER VIDEO CD/VIDEO CD
  The following measured at AC 120, 220, 240 V 50/60    MD OUT (phono jacks): voltage 250 mV               /CD player section
                          Hz                                                   impedance 1 k               System                  Compact disc and digital
  DIN power output (rated)110 + 110 W                   VIDEO OUT (phono jack):                                                    audio and video system
                          (8  at 1 kHz, DIN)                                  max,output level             Laser                   Semiconductor laser
  Continuous RMS power output (reference)                                     1Vp-p, unbalanced, Sync                              (=780nm)
                          140 + 140 W                                         negative, load impedance                             Emission duration:
                          (8  at 1 kHz, 10% THD)                              75                                                   continuous
                                                        S-VIDEO OUT (4-pin/ mini-DIN jack):                Laser output            Max. 44.6
