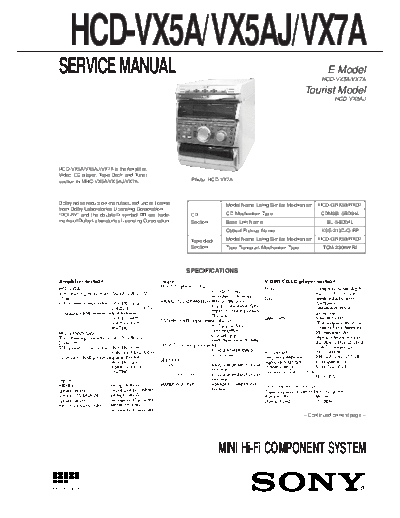

Image preview - the first page of the document



>> Download HCD-VX5A_X documenatation <<

Text preview - extract from the document

       HCD-VX5A/VX5AJ/VX7A
  SERVICE MANUAL                                                                                               E Model
                                                                                                            HCD-VX5A/VX7A

                                                                                                     Tourist Model
                                                                                                                 HCD-VX5AJ




  HCD-VX5A/VX5AJ/VX7A is the Amplifier,
  Video CD player, Tape Deck and Tuner
  section in MHC-VX5A/VX5AJ/VX7A.                       Photo: HCD-VX7A



  Dolby noise reduction manufactured under license                   Model Name Using Similar Mechanism    HCD-GRX50/RXD7
  from Dolby Laboratories Licensing Corporation.
  "DOLBY" and the double-D symbol a are trade-          CD           CD Mechanism Type                      CDM38L-5BD34L
  marks of Dolby Laboratories Licensing Corporation.    Section      Base Unit Name                           BU-5BD34L
                                                                     Optical Pick-up Name                   KSS-213D/Q-RP

                                                        Tape deck    Model Name Using Similar Mechanism    HCD-GRX50/RXD7
                                                        Section      Tape Transport Mechanism Type          TCM-230AWR2



                                                       SPECIFICATIONS
