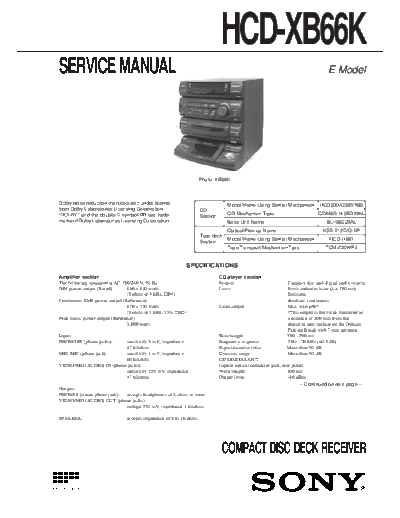

Image preview - the first page of the document
>> Download HCD-XB66K documenatation <<
Text preview - extract from the document
HCD-XB66K
SERVICE MANUAL E Model
Photo: XB66K
Dolby noise reduction manufactured under license Model Name Using Similar Mechanism HCD290/G330/XB3
from Dolby Laboratories Licensing Corporation. CD
"DOLBY" and the double-D symbol a are trade- CD Mechanism Type CDM37LH-5BD29AL
Section
marks of Dolby Laboratories Licensing Corporation. Base Unit Name BU-5BD29AL
Optical Pick-up Name KSS-213D/Q-NP
Tape deck
Model Name Using Similar Mechanism HCD-H881
Section
Tape Transport Mechanism Type TCM-220WR2
SPECIFICATIONS
Amplifier section CD player section
The following measured at AC 120/240 V, 50 Hz System Compact disc and digital audio system
DIN power output (Rated) 140 + 140 watts Laser Semiconductor laser ( = 780 nm)
(8 ohms at 1 kHz, DIN) Emission
Continuous RMS power output (Reference) duration: continuous
170 + 170 watts Laser output Max. 44.6 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
