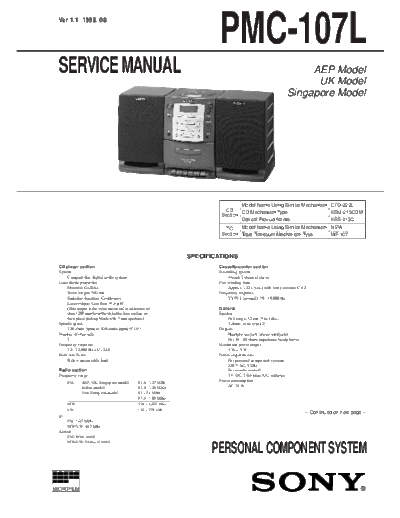

Image preview - the first page of the document



>> Download PMC-107L documenatation <<

Text preview - extract from the document

  Ver 1.1 1998. 08


                                                                            PMC-107L
  SERVICE MANUAL                                                                                                       AEP Model
                                                                                                                        UK Model
                                                                                                                  Singapore Model




                                                                                      Model Name Using Similar Mechanism CFD-222L
                                                                                CD    CD Mechanism Type                  KSM-213CDM
                                                                              Section
                                                                                      Optical Pick-up Name               KSS-213C
                                                                                TC    Model Name Using Similar Mechanism NEW
                                                                              Section Tape Transport Mechanism Type      MF-107



                                                                    SPECIFICATIONS
  CD player section                                                         Cassette-corder section
  System                                                                    Recording system
       Compact disc digital audio system                                         4-track 2 channel stereo
  Laser diode properties                                                    Fast winding time
       Material: GaAlAs                                                          Approx. 120 s (sec.) with Sony cassette C-60
       Wave length: 780 nm                                                  Frequency response
       Emission duration: Continuous                                             TYPE I (normal): 70 - 10,000 Hz
       Laser output: Less than 44.6
