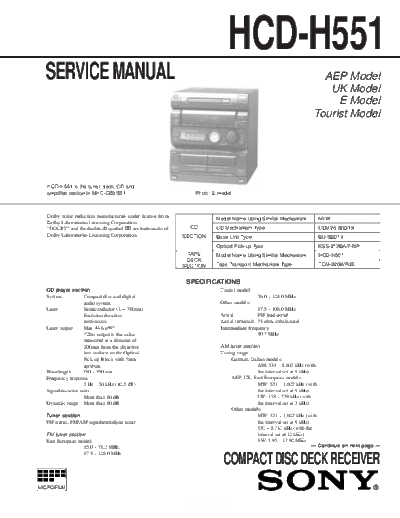

Image preview - the first page of the document
SONY HCD - H 551 ( HI-FI )


>> Download SONY HCD - H 551 ( HI-FI ) documenatation <<

Text preview - extract from the document
                                                                          HCD-H551
  SERVICE MANUAL                                                                                                 AEP Model
                                                                                                                  UK Model
                                                                                                                    E Model
                                                                                                               Tourist Model




   HCD-H551 is the tuner, deck, CD and
   amplifier section in MHC-G55/551.                         Photo: E model



  Dolby noise reduction manufactured under license from              Model Name Using Similar Mechanism          NEW
  Dolby Laboratories Licensing Corporation.
  "DOLBY" and the double-D symbol a are trademarks of       CD       CD Mechanism Type                           CDM28-5BD19
  Dolby Laboratories Licensing Corporation.               SECTION    Base Unit Type                              BU-5BD19
                                                                     Optical Pick-up Type                        KSS-213BA/F-NP
                                                           TAPE      Model Name Using Similar Mechanism          HCD-H501
                                                           DECK
                                                          SECTION    Tape Transport Mechanism Type               TCM-220WR2E


                                                           SPECIFICATIONS
  CD player section                                                   Tourist model:
  System            Compact disc and digital                                           76.0
