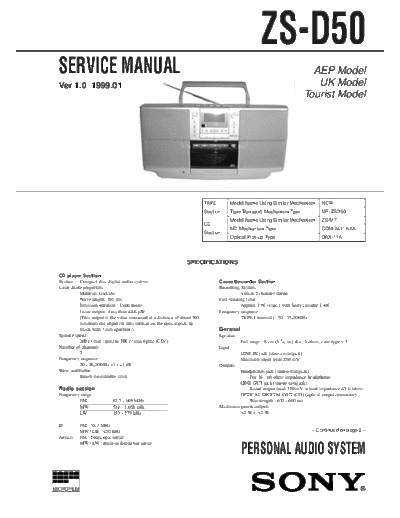

Image preview - the first page of the document



>> Download ZS-D50 documenatation <<

Text preview - extract from the document

                                                                                                          ZS-D50
  SERVICE MANUAL                                                                                                                  AEP Model
  Ver 1.0 1999.01                                                                                                                  UK Model
                                                                                                                                Tourist Model




                                                                            TAPE           Model Name Using Similar Mechanism             NEW
                                                                            Section        Tape Transport Mechanism Type                  MF-ZSD50
                                                                                           Model Name Using Similar Mechanism             ZS-M7
                                                                            CD
                                                                                           MD Mechanism Type                              CDM-2411AAA
                                                                            Section
                                                                                           Optical Pick-up Type                           DAX-11A




                                                                  SPECIFICATIONS

  CD player Section
  System Compact disc digital audio system                                         Cassette-corder Section
  Laser diode properties                                                           Recording System
            Material: GaAlAs                                                                 4-track 2 channel stereo
            Wave length: 780 nm                                                    Fast winding time
            Emission duration : Continuous                                                   Approx. 130 s (sec.) with Sony cassette C-60
            Laser output : Less than 44.6
