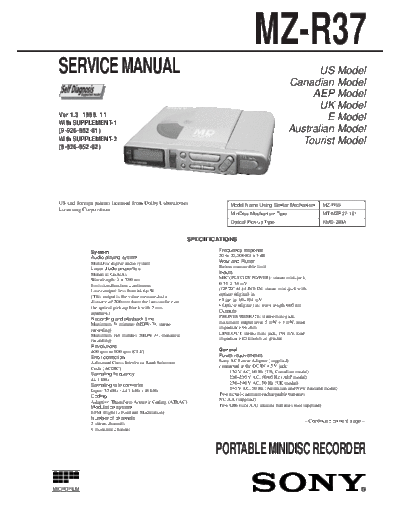

Image preview - the first page of the document



>> Download mz-r37 documenatation <<

Text preview - extract from the document

                                                                                 MZ-R37
  SERVICE MANUAL                                                                                         US Model
                                                                                                  Canadian Model
                                                                                                       AEP Model
                                                                                                         UK Model
  Ver 1.3 1999. 11
  With SUPPLEMENT-1
                                                                                                           E Model
  (9-926-952-81)                                                                                  Australian Model
  With SUPPLEMENT-2                                                                                  Tourist Model
  (9-926-952-82)




  US and foreign patents licensed from Dolby Laboratories             Model Name Using Similar Mechanism         MZ-R55
  Licensing Corporation.
                                                                      MiniDisc Mechanism Type                    MT-MZR37-161
                                                                      Optical Pick-up Type                       KMS-280A


                                                         SPECIFICATIONS
               System                                            Frequency response
               Audio playing system                              20 to 20,000 Hz
