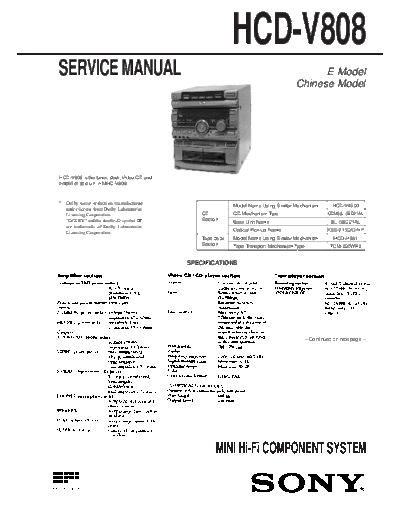

Image preview - the first page of the document



>> Download hcd-v808 documenatation <<

Text preview - extract from the document

                                                              HCD-V808
  SERVICE MANUAL                                                                             E Model
                                                                                       Chinese Model




  HCD-V808 is the tuner, deck, Video CD and
  amplifier section in MHC-V808.


  * Dolby noise reduction manufactured
                                                              Model Name Using Similar Mechanism         HCD-V4500
    under license from Dolby Laboratories
    Licensing Corporation.                        CD          CD Mechanism Type                        CDM38L-5BD21AL
    "DOLBY" and the double-D symbol a             Section     Base Unit Name                             BU-5BD21AL
    are trademarks of Dolby Laboratories
    Licensing Corporation.                                    Optical Pick-up Name                     KSS-213D/Q-NP
                                                  Tape deck   Model Name Using Similar Mechanism          HCD-H881
                                                  Section     Tape Transport Mechanism Type             TCM-220WR2
