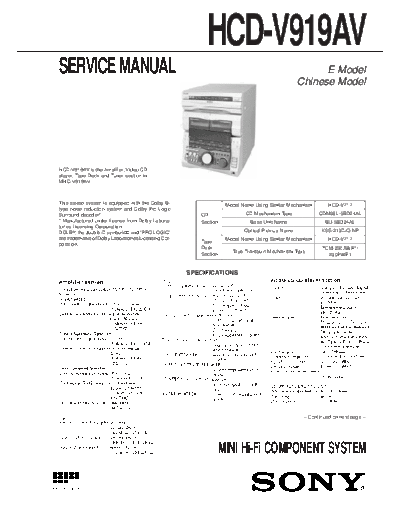

Image preview - the first page of the document



>> Download hcd-v919av documenatation <<

Text preview - extract from the document

                                                              HCD-V919AV
  SERVICE MANUAL                                                                                           E Model
                                                                                                     Chinese Model




  HCD-V919AV is the Amplifier, Video CD
  player, Tape Deck and Tuner section in
  MHC-V919AV.



  This stereo system is equipped with the Dolby B-                     Model Name Using Similar Mechanism       HCD-V717
  type noise reduction system and Dolby Pro Logic
  Surround decoder*.                                        CD                CD Mechanism Type             CDM38L-5BD24AL
  * Manufactured under license from Dolby Labora-           Section             Base Unit Name                BU-5BD24AL
  tories Licensing Corporation.
  DOLBY, the double-D symbol a and "PRO LOGIC"                                Optical Pick-up Name           KSS-213D/Q-NP
  are trademarks of Dolby Laboratories Licensing Cor-                  Model Name Using Similar Mechanism       HCD-V717
  poration.                                                 Tape
                                                            Deck                                             TCM-230AWR1/
                                                                         Tape Transport Mechanism Type
                                                            Section                                            230PWR1


                                                        SPECIFICATIONS
