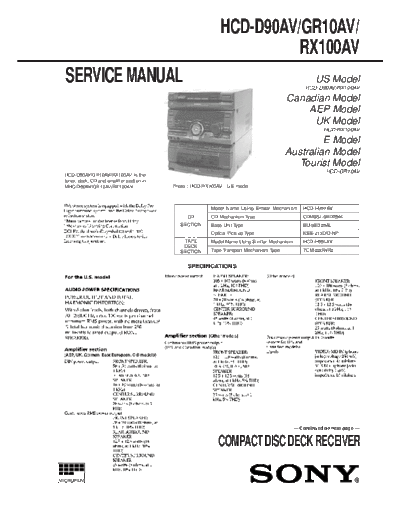

Image preview - the first page of the document
>> Download hcd-d90av_gr10av_rx100av documenatation <<
Text preview - extract from the document
HCD-D90AV/GR10AV/
RX100AV
SERVICE MANUAL US Model
HCD-D90AV/RX100AV
Canadian Model
AEP Model
UK Model
HCD-RX100AV
E Model
Australian Model
Tourist Model
HCD-GR10AV
HCD-D90AV/GR10AV/RX100AV is the
tuner, deck, CD and amplifier section in
MHC-D90AV/GR10AV/RX100AV. Photo : HCD-RX100AV : US model
Model Name Using Similar Mechanism HCD-H991AV
CD CD Mechanism Type CDM38L-5BD29AL
SECTION Base Unit Type BU-5BD29AL
Optical Pick-up Type KSS-213D/Q-NP
TAPE Model Name Using Similar Mechanism HCD-H991AV
DECK
SECTION Tape Transport Mechanism Type TCM-220WR2
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
MICROFILM
--1--
