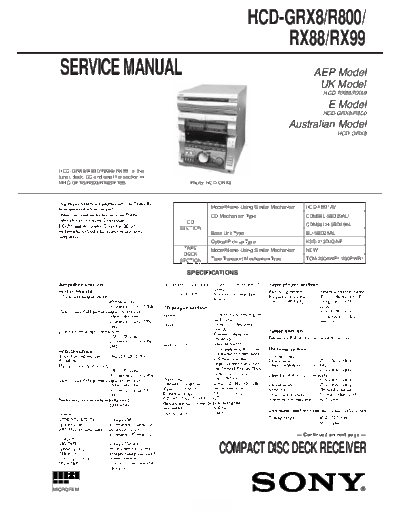

Image preview - the first page of the document
>> Download hcd-grx8_x documenatation <<
Text preview - extract from the document
HCD-GRX8/R800/
RX88/RX99
SERVICE MANUAL AEP Model
UK Model
HCD-RX88/RX99
E Model
HCD-GRX8/R800
Australian Model
HCD-GRX8
HCD-GRX8/R800/RX88/RX99 is the
tuner, deck, CD and amplifier section in
MHC-GRX8/R800/RX88/RX99. Photo: HCD-GRX8
Model Name Using Similar Mechanism HCD-H991AV
CD Mechanism Type CDM38L-5BD29AL/
CD CDM38LH-5BD29AL
SECTION
Base Unit Type BU-5BD29AL
Optical Pick-up Type KSS-213D/Q-NP
TAPE Model Name Using Similar Mechanism NEW
DECK
SECTION Tape Transport Mechanism Type TCM-230AWR1/230PWR1
SPECIFICATIONS
-- Continued on next page --
COMPACT DISC DECK RECEIVER
