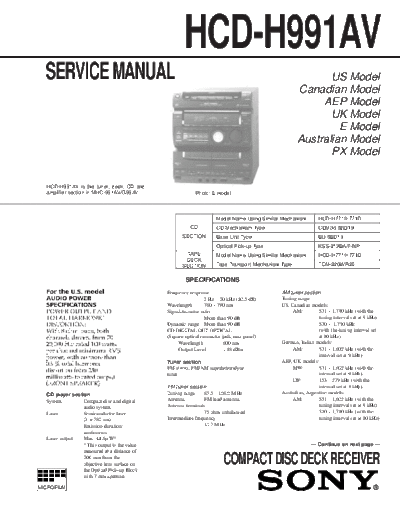

Image preview - the first page of the document
>> Download hcd-h991av_sch documenatation <<
Text preview - extract from the document
HCD-H991AV
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
PX Model
HCD-H991AV is the tuner, deck, CD and
amplifier section in MHC-991AV/G99AV. Photo: E model
Model Name Using Similar Mechanism HCD-H771/H771D
CD CD Mechanism Type CDM38-5BD19
SECTION Base Unit Type BU-5BD19
Optical Pick-up Type KSS-213BA/F-NP
TAPE Model Name Using Similar Mechanism HCD-H771/H771D
DECK
SECTION Tape Transport Mechanism Type TCM-220WR2E
SPECIFICATIONS
Frequency response AM tuner section
