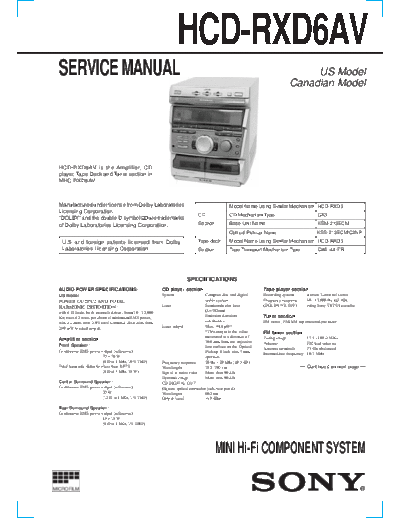

Image preview - the first page of the document



>> Download hcd-rxd6av documenatation <<

Text preview - extract from the document

                                                                   HCD-RXD6AV
  SERVICE MANUAL                                                                                                                    US Model
                                                                                                                               Canadian Model




  HCD-RXD6AV is the Amplifier, CD
  player, Tape Deck and Tuner section in
  MHC-RXD6AV.



  Manufactured under license from Dolby Laboratories                                             Model Name Using Similar Mechanism HCD-RXD3
  Licensing Corporation.
                                                                               CD                CD Mechanism Type                             CX3
  "DOLBY" and the double-D symbol a are trademarks
  of Dolby Laboratories Licensing Corporation.                                 Section           Base Unit Name                                KSM-213ECM
                                                                                                 Optical Pick-up Name                          KSS-213ECM/C2NP

   U.S and foreign patents licensed from Dolby                                 Tape deck         Model Name Using Similar Mechanism HCD-RXD3
   Laboratories Licensing Corporation.                                         Section           Tape Transport Mechanism Type                 CWL-44-FR




                                                                         SPECIFICATIONS
  AUDIO POWER SPECIFICATIONS:                             CD player section                                      Tape player section
  US model                                                System                   Compact disc and digital      Recording system         4-track 2-channel stereo
  POWER OUTPUT AND TOTAL                                                           audio system                  Frequency response       60 - 13,000 Hz (
