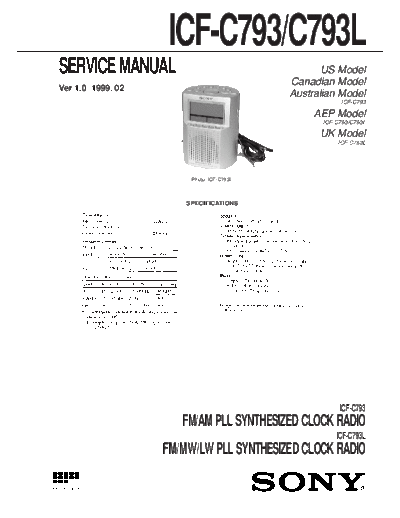

Image preview - the first page of the document
>> Download hifi_-_sony_icf-c793_v1.0_sm_143 documenatation <<
Text preview - extract from the document
ICF-C793/C793L
SERVICE MANUAL US Model
Canadian Model
Ver 1.0 1999. 02
Australian Model
ICF-C793
AEP Model
ICF-C793/C793L
UK Model
ICF-C793L
Photo: ICF-C793L
SPECIFICATIONS
ICF-C793
FM/AM PLL SYNTHESIZED CLOCK RADIO
ICF-C793L
FM/MW/LW PLL SYNTHESIZED CLOCK RADIO
MICROFILM
TABLE OF CONTENTS SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
1. GENERAL ................................................................... 3 ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, "metallized" knobs,
2. DISASSEMBLY ......................................................... 5 screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
3. ELECTRICAL ADJUSTMENTS ......................... 6
LEAKAGE TEST
4. DIAGRAMS The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
4-1. Block Diagram ................................................................ 9
return to chassis, must not exceed 0.5 mA (500 microampers.).
4-2. Printed Wiring Boards .................................................... 11
Leakage current can be measured by any one of three methods.
4-3. Schematic Diagram ......................................................... 13
1. A commercial leakage tester, such as the Simpson 229 or RCA
4-4. IC Pin Function Description ........................................... 16
WT-540A. Follow the manufacturers' instructions to use these
instruments.
5. EXPLODED VIEWS ................................................ 17
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
6. ELECTRICAL PARTS LIST ............................... 19 3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The "limit" indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suit-
able. (See Fig. A)
To Exposed Metal
Parts on Set
AC
