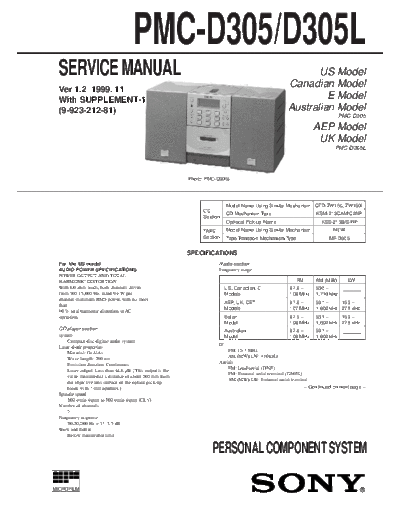

Image preview - the first page of the document



>> Download pmc-d305 documenatation <<

Text preview - extract from the document

                                      PMC-D305/D305L
  SERVICE MANUAL                                                                                             US Model
                                                                                                      Canadian Model
  Ver 1.2 1999. 11
  With SUPPLEMENT-1                                                                                            E Model
  (9-923-212-81)                                                                                      Australian Model
                                                                                                                               PMC-D305

                                                                                                                  AEP Model
                                                                                                                   UK Model
                                                                                                                            PMC-D305L




                                                            Photo: PMC-D305L




                                                                            Model Name Using Similar Mechanism CFD-ZW150, ZW150L
                                                                 CD
                                                                            CD Mechanism Type                      KSM-213CAM/C2NP
                                                                 Section
                                                                            Optiacal Pick-up Name                    KSS-213B/S-RP
                                                                 TAPE       Model Name Using Similar Mechanism             NEW
                                                                 Section    Tape Transport Mechanism Type                MF-D305


                                                            SPECIFICATIONS
  For the US model                                                     Radio section
  AUDIO POWER SPECIFICATIONS                                           Frequency range
  POWER OUTPUT AND TOTAL
  HARMONIC DISTORTION                                                                                       FM     AM (MW)       LW
  With 6.0-ohm loads, both channels driven                                  US, Canadian, E            87.6
