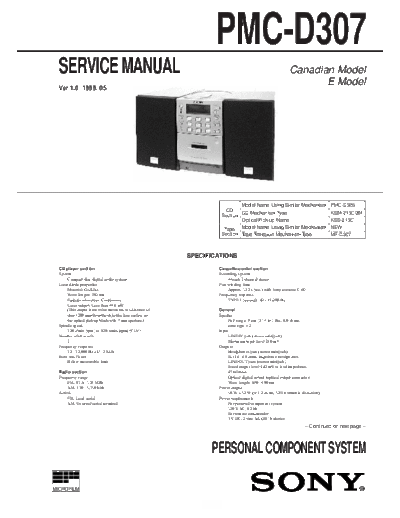

Image preview - the first page of the document



>> Download pmc-d307_119 documenatation <<

Text preview - extract from the document

                                                                    PMC-D307
  SERVICE MANUAL                                                                                            Canadian Model
                                                                                                                   E Model
  Ver 1.0 1999. 05




                                                                               Model Name Using Similar Mechanism              PMC-D305
                                                                         CD    CD Mechanism Type                               KSM-213CDM
                                                                       Section
                                                                               Optical Pick-up Name                            KSS-213C
                                                                        Tape Model Name Using Similar Mechanism                NEW
                                                                       Section Tape Transport Mechanism Type                   MF-D307



                                                             SPECIFICATIONS

  CD player section                                                  Cassette-corder section
  System                                                             Recording system
       Compact disc digital audio system                                  4-track 2 channel stereo
  Laser diode properties                                             Fast winding time
       Material: GaAlAs                                                   Approx. 130 s (sec.) with Sony cassette C-60
       Wave length: 780 nm                                           Frequency response
       Emission duration: Continuous                                      TYPE I (normal): 40 - 15,000 Hz
       Laser output: Less than 44.6
