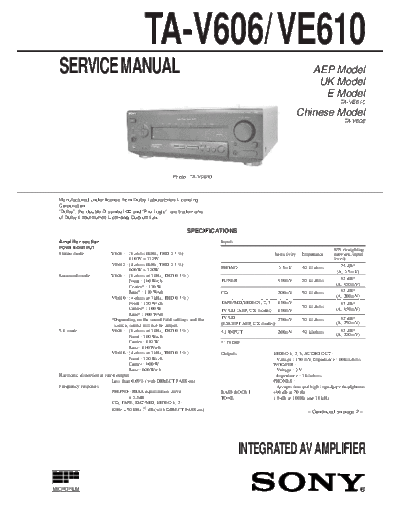

Image preview - the first page of the document
>> Download ta-v606_ve610_115 documenatation <<
Text preview - extract from the document
TA-V606/ VE610
SERVICE MANUAL AEP Model
UK Model
E Model
TA-VE610
Chinese Model
TA-V606
Photo : TA-VE610
Manufactured under license from Dolby Laboratories Licensing
Corporation.
"Dolby", the double-D symbol a and "Pro Logic" are trademarks
of Dolby Laboratories Licensing Corporation.
SPECIFICATIONS
Amplifier section Inputs
POWER OUTPUT S/N (weighting
Stereo mode V606 : (6 ohms 1kHz, THD 0.7 %) Sensitivity Impedance network, input
110 W + 110W level)
VE610 : (4 ohms 1kHz, THD 0.7 %) 75 dB*
100 W + 100W PHONO 2.5mV 50 kilohms
(A, 2.5mV)
Surround mode V606 : (6 ohms at 1kHz, THD 0.7 %)
TUNER 150mV 50 kilohms 82 dB*
Front : 110 W/ch
(A, 150mV)
Center* : 110 W
Rear* : 110 W/ch CD 200mV 50 kilohms 82 dB*
VE610 : (4 ohms at 1kHz, THD 0.7 %) (A, 200mV)
Front : 100 W/ch TAPE/MD,VIDEO1, 2, 3 150mV 82 dB*
Center* : 100 W 50 kilohms
TV/LD (AEP, UK model) 150mV (A, 150mV)
Rear* : 100 W/ch
*Depending on the sound field settings and the TV/LD 250mV 50 kilohms 82 dB*
(EXCEPT AEP, UK model) (A, 250mV)
source, sound will not be output.
5.1 mode V606 : (6 ohms at 1kHz, THD 0.7 %) 5.1 INPUT 200mV 50 kilohms 82 dB*
Front : 110 W/ch (A, 200mV)
Center : 110 W * '78 IHF
Rear : 110 W/ch
VE610 : (4 ohms at 1kHz, THD 0.7 %) Outputs VIDEO 1, 2, 3, AUDIO OUT :
Front : 100 W/ch Voltage : 150 mV, Impedance : 10 kilohms
Center : 100 W WOOFER :
Rear : 100 W/ch Voltage : 2 V
Harmonic distortion at rated output Impedance : 1 kilohms
Less than 0.09% (with DIRECT PASS on) PHONES :
Frequency respones Accepts low and high impedance headphones
PHONO : RIAA equalization curve BASS BOOST +10 dB at 70 Hz
