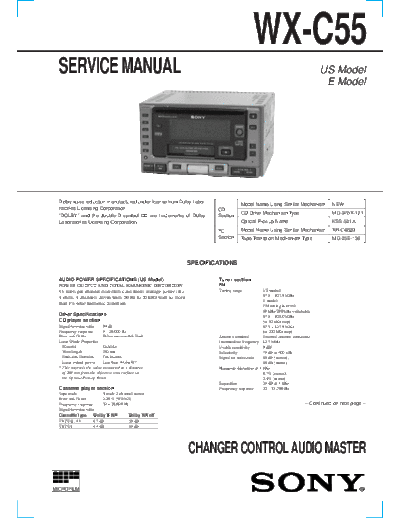

wx-c55_148


>> Download wx-c55_148 documenatation <<

Text preview - extract from the document
                                                                                          WX-C55
  SERVICE MANUAL                                                                                                              US Model
                                                                                                                               E Model




  Dolby noise reduction manufactured under license from Dolby Labo-                 Model Name Using Similar Mechanism             NEW
  ratories Licensing Corporation.                                       CD
                                                                                    CD Drive Mechanism Type                        MG-378X-121
  "DOLBY" and the double-D symbol a are trademarks of Dolby             Section
  Laboratories Licensing Corporation.                                               Optical Pick-up Name                           KSS-521A

                                                                        TC          Model Name Using Similar Mechanism             XR-C8820
                                                                        Section     Tape Transport Mechanism Type                  MG-25E-136




                                                                SPECIFICATIONS

  AUDIO POWER SPECIFICATIONS (US Model)                                 Tuner section
  POWER OUTPUT AND TOTAL HARMONIC DISTORTION                            FM
  13 watts per channel minimum continuous average power into            Tuning range             US model:
  4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more                                    87.5
