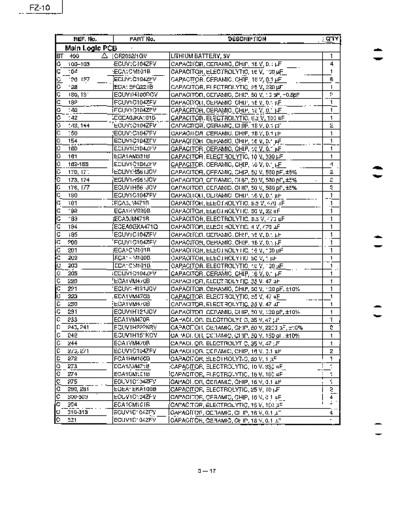

Image preview - the first page of the document
>> Download GetDoc documenatation <<
Text preview - extract from the document
F I Z - 1
I REF. No. PART No. DESCRIPTION I Q'TYI
Main Logic PCB"
BT 400 h lcR2032HGv !LITHIUM BAIT_ERY.3V 1 I
c 100-103 ECUVIC104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 ILF 4
c 104 ECAICM1 OIB CAPACITOR, ELECTROLYTIC, 16 V, 100 ILF 1
C 120-127 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 8
C 128 ECAI EFQ221B CAPACITOR, ELECTROLYTIC, 25 V, 220 WF 1
c 130,131 ECUVIHIOODCV CAPACITOR, CERAMIC, CHIP, 50 V, 10 pF, +0.5PF 2
C 132 ECUVIC104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 140 ECUVIC104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 P.F 1
C 142 ECEAOJKAIOIB CAPACITOR, ELECTROLYTIC, 6.3 V, 100 VF 1
c 143,144 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 WF 2
c 150 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 VF 1
c 154 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
C 160 ECUVI Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 VF 1
C 161 ECA1AM331B CAPACITOR, ELECTROLWIC, 10 V, 330 WF 1
C 162-165 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.L.F 4
c 170,171 ECUVIH561JCV CAPACITOR, CERAMIC, CHIP, 50 V, 560 PF, +s~o 2
c 173, 174 ECUV1H561JCV CAPACITOR, CERAMIC, CHIP, 50 V, 560 PF, fs~o .2
C 176,177 ECUV1H561JCV CAPACITOR, CERAMIC, CHIP, 50 V, 560 PF, +s~o 2
C 180 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 WF 1
C 181 ECAOJM471 B CAPACITOR, ELECTROLYTIC, 6.3 V, 470 H.F 1
C 182 ECA1HM220B CAPACITOR, ELECTROLYTIC, 50 V, 22 VF 1
C 183 ECAOJM471 B CAPACITOR, ELECTROLYTIC, 6.3 V, 470 LF 1
C 184 ECEAOGKA471Q CAPACITOR, ELECTROLYTIC, 4 V, 470 LF 1
C 185 ECUVICI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1 -
c 200 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 201 ECAICM1 OIB CAPACITOR, ELECTROLYTIC, 16 V, 100 yF 1
c 202 ECA1HM1OOB CAPACITOR, ELECTROLYTIC, 50 V, 1 I.LF 1
C 203 ECAICMIOIB CAPACITOR, ELECTROLYTIC, 16 V, 100 ILF 1
C 205 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 220 ECA1VM470B CAPACITOR, ELECTROLYTIC, 35 V, 47 I.LF 1
c 221 ECUVIH121JCV CAPACITOR, CERAMIC, CHIP, 50 V, 120 PF, *1OYO 1
c 223 ECA1VM470B CAPACITOR, ELECTROLYTIC, 35 V, 47 WF 1
C 230 ECA1VM470B CAPACITOR, ELECTROLYTIC, 35 V, 47 ILF 1
C 231 ECUV1H121JCV CAPACITOR, CERAMIC, CHIP, 50 V, 120 PF, tlOYo 1
C 233 ECA1VM470B CAPACITOR, ELECTROLYl_lC,35 V, 47 KF 1
C 240,241 ECUV1H222KBV CAPACITOR, CERAMIC, CHIP, 50 V, 2200 l)F, tlOYo 2
C 242 ECUV1H151KCV CAPACITOR, CERAMIC, CHIP, 50 V, 150 pF, *1OYO 1
C 244 ECAIVM470B CAPACITOR, ELECTROLWIC, 35 V, 47 I.LF 1
C 270,271 ECUV1CI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 ILF 2
C 272 ECAI HMI OOB CAPACITOR, ELECTROLYllC, 50 V, 1 ILF 1
C 273 ECA1AM471B CAPACITOR, ELECTROLYTIC, 10 V, 330 VF 1
C 274 ECAICMIOIB CAPACITOR, ELECTROLYTIC, 16 V, 100 VF 1
C 275 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 u.F 1
C 280,281 ECEA1EKA1OOB CAPACITOR, ELECTROLYTIC, 25 V, 10 I.LF 2
c 300-303 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 KF 4
c 304 ECAICM101B CAPACITOR, ELECTROLYTIC, 16 V, 100 WF 1
c 310-313 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 WF 4
~C 321 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 yF 1
3 --17
I FZ-I O
REF. No. PART No. DESCRIPTION Q'TY
C 323 ECUVICI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 ILF 1
c 331 ECUVI CI.04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 P.F 1
c 333 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 w.F 1
c 340 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 WF 1
c 350,351 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 ILF 2
c 400 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 401 ECA1VM470B CAPACITOR, ELECTROLYTIC, 35 V, 47 ILF 1
C 402 DCUA1CI05ZFY CAPACITOR, CERAMIC, CHIP, 16 V, 1 WF 1
C "420 ECAIAMI02B CAPACITOR, ELECTROLWIC, 10 V, 1000 LF 1
C 421 DCUG1E104ZFR CAPACITOR, CERAMIC, CHIP, 25 V, 0.1 I.LF 1
C 520 ECUV1C104ZFV 6ApAClT0R, CERAMIC, cHIP, 16 v, 0.1 I.LF 1
C 521 ECA1AMI02B CAPACITOR, ELECTROLWC, 10 V, 1000 WF 1
C 522 ECA1CM101B CAPACITOR, ELECTROLYTIC, 16 V, 100 P.F 1
C 523 ECA1AMI02B CAPACITOR, ELECTROLYTIC, 10 V, 1000 LF 1
C 600,601 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 2
C 640-643 ECUVIC104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 4
q C
C
644,645
647
ECUV1H1OODCV
ECEAOJKAIO1 B
CAPACITOR, CERAMIC, CHIP, 50 V, 10 PF, *0.5PF
CAPACITOR, ELECTROLYTIC, 6.3 V, 100 ,uF
2
1
C 650 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 660,661 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 2
C 662 ECUV1H151KCV CAPACITOR, CERAMIC, CHIP, 50 V, 150 pF, +1O%'O 1
C 700-702 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 VF 3
c 703 ECEAOJKAIO1 B CAPACITOR, ELECTROLYTIC, 6.3 V, 100 P-F 1
c 704 ECUV1H102KBV CAPACITOR, CERAMIC, CHIP, 50 V, 1000 PF,+1OYO 1
c 705 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
C 706 ECUVI H123KBV CAPACITOR, CERAMIC, CHIP, 50 V, 12GO0 *1OYO
pF, 1
c 707 DCUCI E224KBY CAPACITOR, CERAMIC, CHIP, 25 V, 220000 pF, *1O'YO 1
C 708 DCUCIC334KBY CAPACITOR, CERAMIC, CHIP, 16 V, 330000 pF, tlO% 1
c 709,710 ECUV1CI04ZFV CAPACITOR, CERAMIC, CH!P, 16 V, 0.1 ILF 2
C 720 ECAI HM220B CAPACITOR, ELECTROLWIC, 50 V, 22 VF 1
C 721 ECA1HM2R2B CAPACITOR, ELECTROLYTIC, 50 V, 2.2 I.LF 1
C 722 ECUV1H020CCV CAPACITOR, "CERAMIC,CHIP, 50 V, 2 pF, *0.25pF 1
C 723 ECUV1H390JCV CAPACITOR, CERAMIC, CHIP, 50 V, 39 pF, *5Y0 1
C 724 ECUV1H120JCV CAPACITOR, CERAMIC, CHIP, 50 V, 12 pF, *1 O"LO 1
C 725 DCUA1C224KBY CAPACITOR, CERAMIC, CHIP, 25 V, 22000 pF, +10% 1
C 726 ECA1HMO1OB CAPACITOR, ELECTROLYTIC, 50 V, 1 ILF 1
C 727 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
C 728 ECUV1E273KBX CAPACITOR, CERAMIC, CHIP, 25 V, 27000 pF, *I OYO 1
C 729,730 ECUV1H222KBV CAPACITOR, CERAMIC, CHIP, 50 V, 2200 pF, *IO'%. 2
c 731 DCUAICI05ZFY CAPACITOR, CERAMIC, CHIP, 16 V, 1 H.F 1
C 732 ECAI CM1OIB CAPACITOR, ELECTROLYTIC, 16 V, 100 VF 1
c 733 ECUV1C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 734 ECUV1E273KBX CAPACITOR, CERAMIC, CHIP, 25 V, 27000 pF, *1OYO 1
c 735 ECUVI E223KBX CAPACITOR, CERAMIC, CHIP, 25 V, 22000 pF, +10% 1
C 736 DCUAI C224KBY CAPACITOR, CERAMIC, CHIP, 25 V, 22000 pF, *1O% 1
c 737 ECUVIHIOIKCV CAPACITOR, CERAMIC, CHIP, 50 V, 100 pF, +10% 1
C 738 ECUV1H153KBV CAPACITOR, CERAMIC, CHIP, 50 V, 15000 pF, +10% 1
c 739 ECUV1H331KCV CAPACITOR, CERAMIC, CHIP, 50 V, 330 pF, +10'%. 1
c 740 DCUAI E683KBY CAPACITOR, CERAMIC, CHIP, 25 V, 68000 l)F, *1OYO 1
c 741 DCUAI E1383KBY CAPACITOR, CERAMIC, CHIP, 25 V, 68000 l)F, +10% 1
3 -- 18
FZ-10 I
REF. No. PART No. DESCRIPTION Q'TY
C 742 ECUVI C104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
c 743 ECAICM101B CAPACITOR, ELECTROLYTIC, 16 V, 100 I.LF 1
c 745 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 .J.LF 1
c 750 ECUV1CI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 VF 1
c 751 ECUV1H331KCV CAPACITOR, CERAMIC, CHIP, 50 V, 330 pF, *IOYO 1
C 752 ECUVI H102KBV CAPACITOR, CERAMIC, CHIP, 50 V, 1000 pF, *1OYO 1
C 760 ECAICM1OIB CAPACITOR, ELECTROLYTIC, 16 V, 100 I.LF 1
C 761 ECUV1CI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 VF 1
C 762,763 ECUV1H222KBV CAPACITOR, CERAMIC, CHIP, 50 V, 2200 pF, +1OYO 2
C 764 ECUV1CI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 yF 1
C 765 DCUA1C224KBY CAPACITOR, CERAMIC, CHIP, 25 V, 22000 pF, *1 OYO 1
C 766-768 ECUV1CI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 j.LF 3
C 780 ECUVIC104ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 I.LF 1
C 781 ECUV1E473KBX CAPACITOR, CERAMIC, CHIP, 25 V, 47000 pF, *I OYO 1
C 782 ECUV1E333KBX CAPACITOR, CERAMIC, CHIP, 25 V, 33000 pF, *I 07. 1
C 783 DCUA1E683KBY CAPACITOR, CERAMIC, CHIP, 25 V, 68000 pF, *1O'YO 1
C 784 ECUV1E333KBX CAPACITOR, CERAMIC, CHIP, 25 V, 33000 pF, *1OYO 1
c 790 ECUV1CI04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 VF 1
C 791,792 ECUV1H103KBV CAPACITOR, CERAMIC, CHIP, 50 V, 10000 pF, *IOYO 2
c 793 DCUA1C224KBY CAPACITOR, CERAMIC, CHIP, 25 V, 22000 pF, *1 OYO 1
c 794 ECUV1H561KBV CAPACITOR, CERAMIC, CHIP, 50 V, 560 pF, *5~o 1
C 800 ECUVI Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 P.F 1
c 900 ECUV1HI02KBV CAPACITOR, CERAMIC, CHIP, 50 V, 1000 pF, &lOYo 1
C 901,902 ECUVI H561KBV CAPACITOR, CERAMIC, CHIP, 50 V, 560 pF, *5Y0 2
c 903,904 ECUV1H102KBV CAPACITOR, CERAMIC, CHIP, 50 V, 1000 pF, *1OYO 2
C 905,906 ECUVIHI OIKCV CAPACITOR, CERAMIC, CHIP, 50 V, 100 pF, +IO?40 2
c 907 ECUV1Cl 04ZFV CAPACITOR, CERAMIC, CHIP, 16 V, 0.1 p.F 1
CN 420 DFJS18N12YAJ CONNECTOR, 18-Pin, PC BOARD, POWER 1
CN 500 DFJFOAO03ZAH CONNECTOR, 12= PinAUDIO/VIDEO 1
CN 620 DFJP30C95ZAH CONNECTOR, 30=.Pin, XPANSION PORT
E 1
CN 720 DFJS11N39WA CONNECTOR, 1l-Pin, CD-ROM DRIVE 1
CN 760 DFJS090ZAO04 CONNECTOR. 4-Pin. CD-ROM DRIVE 1
CN 761 DFJS090ZAO06 CONNECTOR; 6-Pin; CD-ROM DRIVE 1-
CN 762 DFJP02C88ZAJ CONNECTOR, 2-Pin, CD-ROM DRIVE "1
CN 763 DFJP02C30WAB CONNECTOR, 2-Pin, CD-ROM DRIVE 1
CN 800 DFJS68D61YBF CONNECTOR, 68-Pin, AV EXPANSION PORT 1
CN 900 DFJP09E22ZAM CONNECTOR, 9-Pin, CONTROLLER PORT 1
D 160, 161 DAM4041MTAJN DIODE 2
D 260 DEDAP202UT7 DIODE 1
D 420,421 MA11ITX DIODE 2
D 520 DEDI 1EQS04T5 DIODE 1
D 760 DEDSFPM52V DIODE 1
D 900 DEDI 1EQS04T5 DIODE 1
Ic 100 DA86C06020XV Ic, CPU 1
Ic 120 MN7BO03ABK IC, SYSTEM IC, ANVIL 1
Ic 140 DA33269D33-Q IC, REGULATOR 1
Ic 141 DAHCT7007170 IC, LOGIC 1
Ic 200 DA431OVME2XQ IC, AUDIO DAC 1
IC 201 DA78L05~L-O IC, REGULATOR 1
3 --19
!--- FZ-1O
REF. No. PART No. DESCRIPTION Q'TY
ic 220 DANJM2902MTP IC, OP AMP 1
Ic 300,301 DA8182517JTJ IC, 2M VRAM 2
Ic 310,311 DA4800AJ8T0 IC, 4M DRAM 2
IC 320,321 DA8182517JTJ IC, 2M VRAM 2
Ic 330,331 DA4800AJ8T0 IC, 4M DRAM 2
Ic 340 DA5388Y9T-S IC, 8M MASK ROM 1
Ic 350 DA2A256SM7TW IC, SRAM 1
Ic 351 DAHC132AH0 IC, LOGIC 1
Ic 400 DABA6162FT2E IC, RESET 1
IC 520 ENC37454 IC, RF MODULATOR 1
IC 600 DA623854PVJ IC, CD-ROM l/F 1
IC 640 DA98000KV26V IC, ECC 1
IC 650 DA2A256SM7TW IC, SRAM 1
Ic 660 MN188241OFZA IC, CPU CD-ROM DRIVE 1
Ic 700 MN662720RB IC, CD DSP 1
IC 701 DA78L05FTL-O IC, REGULATOR 1
[C 720 AN8803NSB-E2 IC. HEAD AMP 1
Ic 750 DABAI0393FTE IC; LENEAR 1
IC 760 AN8388SR-E2 IC, MOTOR DRIVER 1
IC 780 DABA10358FTE IC, OP AMP 1
Ic 790 DABA10358FTE IC, OP AMP 1
L 122,123 DDAZSR1OKT-Y FERRITE BEAD 2
L 150,151 DDB5Z021D-Y FERRITE BEAD 2
L 154.155 DDB5Z021D-Y FERRITE BEAD 2
+
L 170" ELESN3R3JA INDUCTOR 3.3uH 1
L 172 ELESN3R3JA INDUCTOR 3.3uH 1
L 174 ELESN3R3JA INDUCTOR 3.3uH 1
L 180 DDB5Z021A-Y FERRITE BEAD 1
L 420 DDB5Z021E-Y FERRITE BEAD 1
L 503 ERJ3GEYOROOV CHIP JUMPER 1
L 506,507 ERJ3GEYOROOV CHIP JUMPER 2
L 600 DDB5Z021D-Y FERRITE BEAD 1
L 641 DDAZSR1OKT-Y FERRITE BEAD 1
-., L 643 IDDB5Z021A-Y IFERRITE BEAD 1
L 760.761 IDDB6Z017-F IFERRITE BEAD 2 I
L 900-902 DDB5Z021E-Y FERRITE BEAD 3
LC 100 DEA306F223TL FILTER 1
LC 140 DEA306F223TL FILTER 1
LC 160 DEA306F223TL FILTER 1
LC 300 DEA306F223TL FILTER 1
LC 420 DEA306F223TL FILTER 1
LC 421 DEA306F223TL FILTER 1
LC 500-502 EXCEMT101BT FILTER 3
LC 503,504 DDB6Z017-F FERRITE BEAD 2
LC 520 ERDS2TYOT JUMPER 1
LC 521 DDB6Z017-F FERRITE BEAD 1
LC 629 EXCEMTI 03DT FILTER 1
LC 640 DEA306F223TL FILTER 1
LC 800 DEA306F223TL FILTER 1
