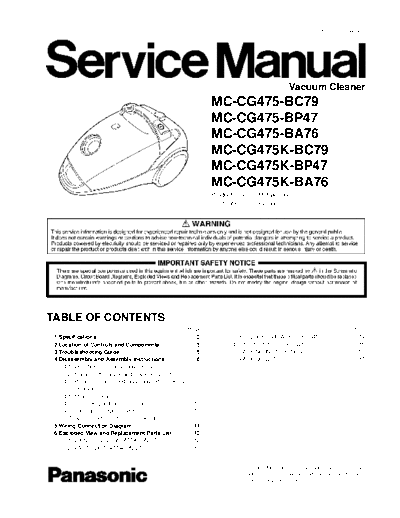

Image preview - the first page of the document
>> Download VCB0703003CE_MC-CG475_k documenatation <<
Text preview - extract from the document
Order No VCB0703003CE
Vacuum Cleaner
MC-CG475-BC79
MC-CG475-BP47
MC-CG475-BA76
MC-CG475K-BC79
MC-CG475K-BP47
MC-CG475K-BA76
Product Color : Metalic blue
Destination : Europe
TABLE OF CONTENTS
PAGE PAGE
1 Specifications ----------------------------------------------------- 2 6.3. EXPLODED VIEW (BODY UNIT)-------------------- 14
2 Location of Controls and Components ------------------- 3 6.4. PARTS LIST (BODY UNIT)---------------------------- 15
3 Troubleshooting Guide ----------------------------------------- 5 6.5. PACKING INSTRUCTIONS --------------------------- 16
4 Disassembly and Assembly Instructions ---------------- 6 6.6. PACKING LIST ------------------------------------------- 17
4.1. Dust box cover assembly removal -------------------- 6
4.2. Separate the upper and lower body units ----------- 6
4.3. Printed circuit board assembly (P.C.B Ass'y)
removal------------------------------------------------------- 7
4.4. Motor removal ---------------------------------------------- 9
4.5. Cord reel partition unit replacement -----------------10
4.6. Rail base U replacement -------------------------------10
4.7. Spring-loaded cord reel pre-winding -----------------10
5 Wiring Connection Diagram ---------------------------------11
6 Exploded View and Replacement Parts List -----------12
6.1. EXPLODED VIEW (ATTACHMETS)-----------------12
6.2. PARTS LIST (ATTACHMETS)-------------------------13
