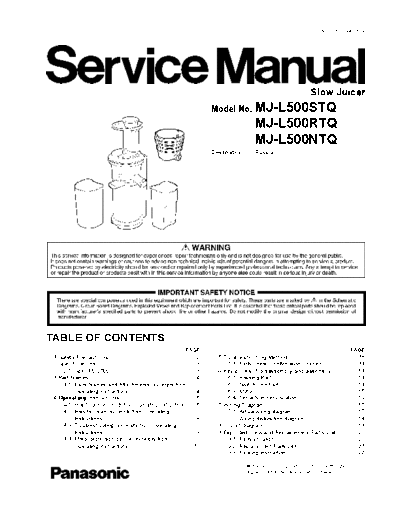

Image preview - the first page of the document
>> Download 20150626_mj-L500stq documenatation <<Text preview - extract from the document No.PTW1504003CE
Slow Juicer
Model No. MJ-L500STQ
MJ-L500RTQ
MJ-L500NTQ
Destination Russia
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2 5 Troubleshooting Method ------------------------------------- 11
2 Specifications ----------------------------------------------------- 3 5.1. Parts check/Confirmation/Solution------------------- 11
2.1. Spec MJ-L500 ---------------------------------------------- 3 6 Key points of disassembly and assembly-------------- 13
3 Part Names --------------------------------------------------------- 4 6.1. Housing Part ---------------------------------------------- 13
3.1. Parts Names and Attachments (excerpts from 6.2. Switch Unit Part ------------------------------------------ 13
Operating Instructions) ----------------------------------- 4 6.3. Motor -------------------------------------------------------- 15
4 Operating Instructions----------------------------------------- 5 6.4. Serial Number Location -------------------------------- 16
4.1. How to use (excerpts from Operating Instructions) ---- 5 7 Wiring Diagram -------------------------------------------------- 17
4.2. How to clean (excerpts from Operating 7.1. Actual wiring diagram ----------------------------------- 17
Instructions) ------------------------------------------------- 8 7.2. Wiring distribution diagram ---------------------------- 18
4.3. Troubleshooting (excerpts from Operating 8 Circuit diagram -------------------------------------------------- 19
Instructions) ------------------------------------------------- 9 9 Exploded View and Replacement Parts List ----------- 20
4.4. Motor protection device (excerpts from 9.1. Parts Location--------------------------------------------- 20
Operating Instructions) ----------------------------------10 9.2. Replacement Parts List--------------------------------- 21
9.3. Packing Instruction -------------------------------------- 22
