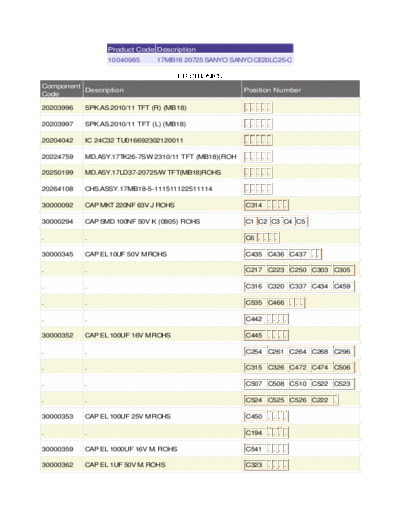

Image preview - the first page of the document
>> Download 10040985 documenatation <<
Text preview - extract from the document
Product Code Description
10040985 17MB18 20725 SANYO SANYO CE20LC25-C
ELECTRONICS
Component
Description Position Number
Code
20203996 SPK.AS.2010/11 TFT (R) (MB18) . . . . .
20203997 SPK.AS.2010/11 TFT (L) (MB18) . . . . .
20204042 IC 24C32 TU016692302120011 . . . . .
20224759 MD.ASY.17TK26-7SW 2310/11 TFT (MB18)(ROH . . . . .
20250199 MD.ASY.17LD37-20725/W TFT(MB18)ROHS . . . . .
20264108 CHS.ASSY.17MB18-5-111511122511114 . . . . .
30000092 CAP MKT 220NF 63V J ROHS C314 . . . .
30000294 CAP SMD 100NF 50V K (0805) ROHS C1 C2 C3 C4 C5
. . C6 . . . .
30000345 CAP EL 10UF 50V M ROHS C435 C436 C437 . .
. . C217 C223 C250 C303 C305
. . C316 C320 C337 C434 C459
. . C535 C466 . . .
. . C442 . . . .
30000352 CAP EL 100UF 16V M ROHS C445 . . . .
. . C254 C261 C264 C268 C296
. . C315 C326 C472 C474 C506
. . C507 C508 C510 C522 C523
. . C524 C525 C526 C222 .
30000353 CAP EL 100UF 25V M ROHS C450 . . . .
. . C194 . . . .
30000359 CAP EL 1000UF 16V M. ROHS C541 . . . .
30000362 CAP EL 1UF 50V M. ROHS C323 . . . .
30000384 CAP EL 2.2UF 50V M ROHS C292 C298 . . .
30000393 CAP EL 3.3UF 50V M ROHS C340 . . . .
. . C408 C409 . . .
30000395 CAP EL 47UF 6.3V M (4*7MM) ROHS C100 . . . .
30000400 CAP EL 47UF 50V M ROHS C412 . . . .
. . C277 C206 . . .
30000407 CAP EL 470UF 16V M. ROHS C521 . . . .
. . C467 C542 . . .
30000464 RES SMD 1/10W 100R J (0805) ROHS R216 R217 . . .
. . R1 . . . .
30000469 RES SMD 1/10W 1K J 0805 ROHS R406 R407 R422 R430 .
30000475 RES SMD 1/10W 10K J 0805 ROHS R432 . . . .
30000546 RES SMD 1/10W 1.5R J (0805) ROHS R106 . . . .
30000706 RES CF 1/4W 47R J ROHS R234 . . . .
30000797 RES SMD 1/10W 75R J (0805) ROHS R400 R401 R402 R429 R431
. . R434 R435 R443 R444 .
30001285 DIODE SMD 1N4148 0.2A/75V ROHS D203 . . . .
. . D200 D417 . . .
. . D175 D176 D177 . .
30001313 DIODE SCH STPS745F 7.5A/45V TO220 RoHS D500 . . . .
30001377 DIODE ZENER 33V UZT 33B ROHS D202 . . . .
30001452 TR NBJT BC327 0.5A/45V TO92 ROHS Q102 . . . .
. . Q203 Q209 . . .
30001454 TR PBJT BC548B 0.1A/30V TO92 ROHS Q200 . . . .
30001457 TR SMD PBJT BC848B 0.1A/30V SOT23 RoHS Q403 Q404 Q405 . .
. . Q400 . . . .
. . Q204 Q205 Q207 Q208 Q401
. . Q406 Q407 Q502 Q503 Q213
. . Q410 Q702 . . .
. . Q500 . . . .
. . Q411 Q412 . . .
30001458 TR SMD NBJT BC858B 0.1A/30V SOT23 RoHS Q402 Q409 . . .
30001692 FILTER SAW OFWK3953M ROHS Z201 . . . .
30001734 JUMPER SMD (0805) ROHS S177 . . . .
. . L501 . . . .
. . J1 R2 R3 . .
30001735 JUMPER SMD 1206 ROHS F502 . . . .
30001741 XTAL 24.576 20p HC49U ROHS X201 . . . .
FERRITE
30001971 L424 . . . .
SMD600R/100MHz200mA1.1R(805)ROHS
. . L1 L2 L3 L4 L5
. . L6 L7 . . .
. . L100 L101 . . .
. . L400 L401 . . .
. . L415 . . . .
. . L102 L103 L104 L201 L203
. . L206 L208 L209 L210 L211
. . L212 L213 L214 L215 L216
. . L217 L218 L220 L411 L412
. . L413 L414 . . .
. . L219 . . . .
. . L410 . . . .
FIXEDCOIL
30002002 L207 . . . .
AXI47uH340mAQ60K1.22R4x9.8RoHS
. . L204 . . . .
POWER CORDSAFE MON.(EUR.WAL PLG)PKG
30002376 . . . . .
RoHS
30002734 TR PBJT BC548C 0.1A/45V TO92 ROHS Q101 . . . .
30006712 FERRITE BEAD AXI 70/100M 3A 3.5x4.7ROHS L177 L505 . . .
30007169 DIODE BAV99 0.25A/70V 4.5A SOT23 ROHS D201 . . . .
30010024 IC HEADPHONE TDA1308T SO8 RoHS IC401 . . . .
30010555 CAP SMD 1UF 16V K R (0805) ROHS C2 C3 C4 . .
30010807 IC SCHM 74HCT14D SO14 RoHS IC403 . . . .
30010822 IC MUX/DEMUX M74HC4052 SO16 ROHS IC404 . . . .
30011180 IC FLASHM 29LV800 8Mb TSOP48 RoHS IC102 . . . .
30011443 XTAL REZ 429KHZ (0.9MM) ROHS X100 . . . .
30011450 FIXED COIL 22UH 5.4A 11.5x15.5 ROHS L509 . . . .
30011742 CABL 1P/25 SISRoHS IC410 IC411 . . .
30012411 DIODE SMD BA782 35V SOD123 ROHS D204 . . . .
30012509 RES SMD 1/16W 100K J (0603) ROHS R266 R509 . . .
. . C484 . . . .
30012510 RES SMD 1/16W 100R J (0603) ROHS R240 R241 R242 . .
. . R100 R101 R111 R112 R113
. . R114 R115 R116 R149 R211
. . R213 R227 R228 R229 R237
. . R238 R250 R251 R254 R260
. . R261 R292 R293 R403 R404
. . R405 R423 R424 R425 R436
. . R439 R455 R257 R152 R153
. . R154 R155 R501 R502 .
. . R101 . . . .
. . R185 R186 . . .
. . R286 R236 . . .
30012545 FILTER SAW K9656M ROHS Z200 . . . .
30012560 CAP SMD 100PF 50V J (0603) ROHS C403 C404 C405 C419 C420
. . C421 C425 C427 C428 C125
. . C132 C461 C473 . .
30012564 CAP SMD 18PF 50V J (0603) ROHS C123 . . . .
30012568 CAP SMD 270PF 50V J (0603) ROHS C440 C441 C444 . .
. . C258 C460 C462 . .
30012573 CAP SMD 47PF 50V J (0603) ROHS C349 C350 C351 C352 C354
. . C355 C356 C364 C365 C366
. . C367 . . . .
. . C431 C432 C433 . .
. . C353 C357 C358 C359 C360
. . C361 C368 C369 C370 .
30012574 CAP SMD 470PF 50V J (0603) ROHS C533 . . . .
30012581 CAP SMD 1NF 50V K R (0603) ROHS C429 C430 C443 . .
. . C278 . . . .
. . C401 C402 . . .
. . C142 C301 C406 C407 C415
. . C416 C417 C418 . .
30012582 CAP SMD 10NF 50V K R (0603) ROHS C108 C109 C338 . .
. . C192 C195 . . .
30012588 CAP SMD 33NF 50V K (0603) ROHS C426 . . . .
. . C263 C267 . . .
30012589 CAP SMD 4.7NF 50V K (0603) ROHS C241 C252 C475 C476 .
30012590 CAP SMD 47NF 50V K (0603) ROHS C231 . . . .
. . C279 C136 C141 C148 .
30012592 CAP SMD 6.8NF 50V K (0603) ROHS C311 . . . .
30012603 CAP SMD 100NF 25V K R (0603) ROHS C527 C532 . . .
. . C100 . . . .
. . C464 . . . .
. . C101 C193 C220 C225 C463
. . C534 C538 C199 . .
30012608 CAP SMD 27PF 50V J CH (0603) ROHS C102 C103 C154 . .
30012610 CAP SMD 10NF 50V J (0603) ROHS C126 C133 . . .
30012641 RES SMD 1/16W 10K J (0603) ROHS R451 R453 R449 . .
. . R441 R442 R476 R485 .
. . R102 R104 R105 R125 R175
. . R176 R177 R178 R179 R182
. . R283 R192 . . .
. . R123 R124 R126 R180 R181
. . R183 R184 R187 R188 R208
. . R224 R233 R276 R284 R287
. . R289 R475 R508 R511 R513
. . R259 R198 . . .
. . R426 . . . .
. . R104 . . . .
. . R503 . . . .
30012644 RES SMD 1/16W 12K J (0603) ROHS R275 . . . .
. . R465 . . . .
. . R466 . . . .
. . R271 . . . .
30012648 RES SMD 1/16W 150K J (0603) ROHS R507 R473 R481 . .
. . R281 R440 . . .
30012657 RES SMD 1/16W 1K J (0603) ROHS R265 R270 . . .
. . R264 R279 . . .
. . R420 R421 . . .
. . R291 R445 R447 . .
30012659 RES SMD 1/16W 2.2K J (0603) ROHS R437 . . . .
30012668 RES SMD 1/16W 220R J (0603) ROHS R310 R311 . . .
. . R495 . . . .
30012669 RES SMD 1/16W 22K J (0603) ROHS R500 R505 R506 . .
. . R290 R512 R496 R206 R197
30012674 RES SMD 1/16W 27K J (0603) RoHS R446 . . . .
. . R230 . . . .
30012677 RES SMD 1/16W 3.3K J (0603) ROHS R106 R107 R110 R117 R118
. . R127 R136 R137 R138 R245
. . R246 R239 . . .
. . R433 . . . .
. . R103 R108 R235 . .
. . R196 . . . .
30012684 RES SMD 1/16W 330R J (0603) ROHS R262 R263 R255 . .
. . R410 R411 . . .
30012685 RES SMD 1/16W 33K J (0603) ROHS R470 R471 R550 R551 .
30012688 RES SMD 1/16W 390R J (0603) ROHS R256 . . . .
30012689 RES SMD 1/16W 39K J (0603) ROHS R267 R474 R478 . .
30012692 RES SMD 1/16W 4.7K J (0603) ROHS R244 R258 R269 R278 R282
. . R479 R156 R514 . .
. . R225 R226 . . .
. . R448 R450 R452 . .
. . R504 . . . .
. . R456 R457 . . .
30012696 RES SMD 1/16W 47K J (0603) ROHS R105 . . . .
. . R232 . . . .
. . R273 R280 R294 R480 .
30012705 RES SMD 1/16W 6.8K J (0603) ROHS R462 . . . .
. . R510 R468 . . .
. . R100 . . . .
. . R469 . . . .
30012707 RES SMD 1/16W 680R J (0603) ROHS R277 . . . .
. . R438 . . . .
30012708 RES SMD 1/16W 68K J (0603) ROHS R207 . . . .
30012713 RES SMD 1/16W 75R J (0603) ROHS R459 R460 R461 R463 R464
. . R467 . . . .
. . R472 R477 . . .
30012982 RES SMD 1/16W 10R J 0603 ROHS R231 R454 . . .
30012985 JUMPER SMD 0603 ROHS S179 S180 . . .
. . S181 S182 . . .
. . S206 S217 R193 R194 .
. . S420 S421 S422 . .
. . S502 S105 S208 S218 S222
. . S223 S427 S428 R515 R556
. . S205 R703 . . .
. . S210 . . . .
. . S410 S411 S412 . .
. . S207 S186 . . .
. . S418 S419 . . .
30012986 RES SMD 1/16W 68R J (0603) ROHS R103 . . . .
30013001 RES SMD 1/16W 1K F (0603) RoHS R102 . . . .
30014022 RES SMD 1/16W 47R J (0603) ROHS R700 . . . .
30015578 RES SMD 1/16W 2.2R J (0603) ROHS R272 R274 R285 R288 .
30016126 CAP SMD 220NF 16V K R (0603) ROHS C500 . . . .
. . C249 C255 C256 C266 C313
. . C545 C284 C285 C306 C307
. . C309 C281 C304 . .
FERRITE
30016162 L422 L423 . . .
SMD1K/100MHz200mA0.45R(0805)RoHS
30016654 CAP SMD 100NF 16V K R (0603) ROHS C411 . . . .
. . C439 C478 C479 . .
. . C116 C117 C118 C130 C138
. . C177 C178 C233 C242 C257
. . C262 C265 C271 C273 C274
. . C276 C282 C283 C286 C287
. . C288 C290 C293 C294 C295
. . C299 C302 C310 C312 C321
. . C322 C324 C327 C329 C330
. . C333 C334 C339 C422 C423
. . C457 C471 C501 C502 C503
. . C504 C505 C511 C512 C513
. . C328 C438 . . .
. . C529 C176 . . .
. . C104 C105 C110 C111 C112
. . C113 C114 C119 C120 C121
. . C122 C124 C131 C134 C135
. . C139 C140 C143 C144 C145
. . C146 C147 C149 C151 C218
. . C244 C245 C246 C275 C289
. . C308 C325 C537 C259 .
30017946 XTAL 14.318 MHZ ROHS X100 . . . .
30018029 TR SMD DPMOS IRF7314 -5.3A/-20V SO8 RoHS IC506 . . . .
. . IC507 . . . .
30018060 TR SMD PMOS FDC642P -4A/-20V TSOP6 ROHS Q703 . . . .
. . Q505 . . . .
30018089 SOCET SCART BLACK TFT RoHS PL401 . . . .
30018879 CONN FPC 50P(0.5MM)HORIZONTAL ROHS PL180 . . . .
