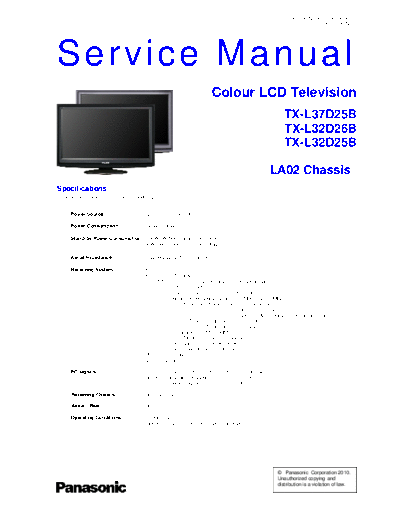

Image preview - the first page of the document
>> Download LA02 TX-L37D25B TX-L32D26B TX-L32D25B documenatation <<
Text preview - extract from the document
ORDER No. PCZ1004050CE
REVISION 3
Service Manual
Colour LCD Television
TX-L37D25B
TX-L32D26B
TX-L32D25B
LA02 Chassis
Specifications
(Information in brackets [ ] refers to model 32")
Power Source: 220-240V AC, 50/60Hz
Power Consumption 147W [136W]
Stand-by Power Consumption: 0.30W (Without monitor out recording)
36W (With monitor out recording)
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System: PAL-I
PAL-525/60 (AV only)
DVB-T/T2 Digital terrestrial services via UHF aerial input.
