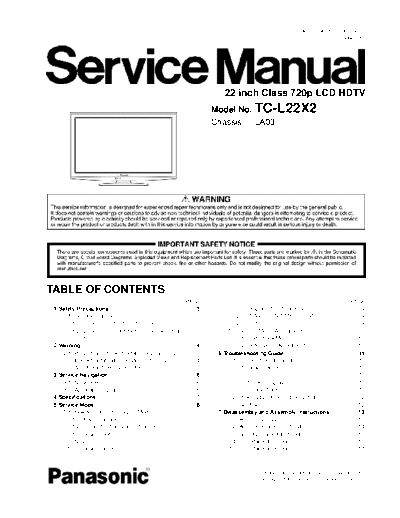

Image preview - the first page of the document
>> Download LA03 TC-L22X2 documenatation <<
Text preview - extract from the document
ORDER NO. MTV1001888CE
B01 Canada: B61
22 inch Class 720p LCD HDTV
Model No. TC-L22X2
Chassis: LA03
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5.2.2. Display of SOS History ------------------------------9
1.1. General Guidelines---------------------------------------- 3 5.2.3. POWER ON TIME/COUNT -------------------------9
1.1.1. Leakage Current Cold Check---------------------- 3 5.2.4. Exit --------------------------------------------------------9
1.1.2. Leakage Current Hot Check (See Figure 5.3. Service Mode Adjustment------------------------------ 10
1.) --------------------------------------------------------- 3 5.3.1. Self Check Mode ------------------------------------ 10
2 Warning -------------------------------------------------------------- 4 5.3.2. Hotel Mode Adjustment ---------------------------- 10
2.1. Prevention of Electrostatic Discharge (ESD) 6 Troubleshooting Guide --------------------------------------- 11
to Electrostatically Sensitive (ES) Devices---------- 4 6.1. Check of the IIC bus lines------------------------------ 11
2.2. About lead free solder (PbF)---------------------------- 5 6.1.1. How to access --------------------------------------- 11
3 Service Navigation ----------------------------------------------- 6 6.1.2. Exit ------------------------------------------------------ 11
3.1. Service Hint ------------------------------------------------- 6 6.1.3. Screen display --------------------------------------- 11
3.2. Applicable signals ----------------------------------------- 6 6.1.4. Check Point ------------------------------------------- 11
4 Specifications ----------------------------------------------------- 7 6.2. Power LED Blinking timing chart --------------------- 12
5 Service Mode ------------------------------------------------------ 8 6.3. No Power--------------------------------------------------- 12
5.1. How to enter into Service Mode ----------------------- 8 7 Disassembly and Assembly Instructions--------------- 13
5.1.1. Key command ----------------------------------------- 8 7.1. AC Cord Dressing---------------------------------------- 13
5.1.2. Contents of adjustment mode --------------------- 8 7.2. AC Cord Bracket Installation -------------------------- 14
5.1.3. How to exit---------------------------------------------- 8 7.3. Side AV Bracket Installation --------------------------- 15
5.2. SRV-TOOL -------------------------------------------------- 9 7.4. LCD Panel Installation 1-------------------------------- 16
5.2.1. How to access ----------------------------------------- 9 7.5. LCD Panel Installation 2-------------------------------- 17
