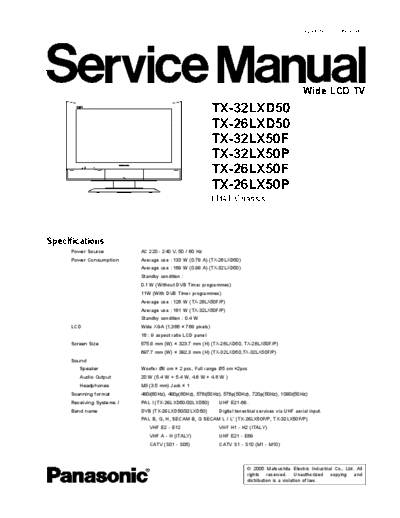

Image preview - the first page of the document
>> Download LH41 TX-32LXD50 TX-26LXD50 TX-32LX50F TX-32LX50P TX-26LX50F TX-26LX50P documenatation <<
Text preview - extract from the document
ORDER NO. PCZ0503030C2
Wide LCD TV
TX-32LXD50
TX-26LXD50
TX-32LX50F
TX-32LX50P
TX-26LX50F
TX-26LX50P
LH41 Chassis
Specifications
Power Source AC 220 - 240 V, 50 / 60 Hz
Power Consumption Average use : 133 W (0.78 A) (TX-26LXD50)
Average use : 169 W (0.98 A) (TX-32LXD50)
Standby condition :
0.1 W (Without DVB Timer programmes)
11W (With DVB Timer programmes)
Average use : 126 W (TX-26LX50F/P)
Average use : 161 W (TX-32LX50F/P)
Standby condition : 0.4 W
