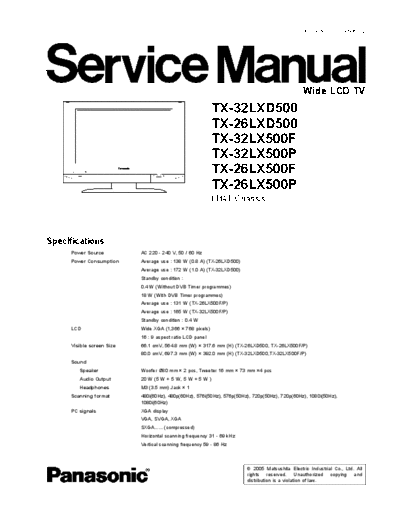

Image preview - the first page of the document
>> Download LH41 TX-32LXD500 TX-26LXD500 TX-32LX500F TX-32LX500P TX-26LX500F TX-26LX500P documenatation <<
Text preview - extract from the document
ORDER NO. PCZ0505058C2
Wide LCD TV
TX-32LXD500
TX-26LXD500
TX-32LX500F
TX-32LX500P
TX-26LX500F
TX-26LX500P
LH41 Chassis
Specifications
Power Source AC 220 - 240 V, 50 / 60 Hz
Power Consumption Average use : 138 W (0.8 A) (TX-26LXD500)
Average use : 172 W (1.0 A) (TX-32LXD500)
Standby condition :
0.4 W (Without DVB Timer programmes)
18 W (With DVB Timer programmes)
Average use : 131 W (TX-26LX500F/P)
Average use : 165 W (TX-32LX500F/P)
Standby condition : 0.4 W
