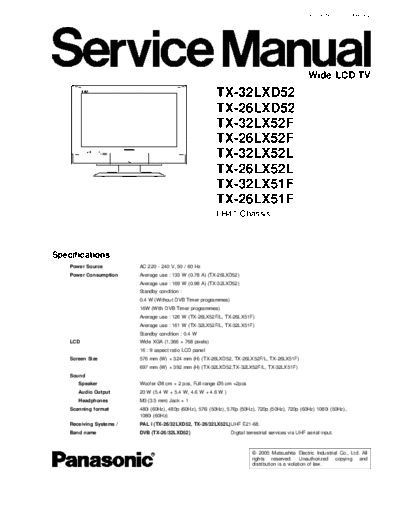

Image preview - the first page of the document
>> Download LH41 TX-32LXD52 TX-26LXD52 TX-32LX52F TX-26LX52F TX-32LX52L TX-26LX52L TX-32LX51F TX-26LX51F documenatation <<
Text preview - extract from the document
ORDER NO. PCZ0509085C2
Wide LCD TV
TX-32LXD52
TX-26LXD52
TX-32LX52F
TX-26LX52F
TX-32LX52L
TX-26LX52L
TX-32LX51F
TX-26LX51F
LH41 Chassis
Specifications
Power Source AC 220 - 240 V, 50 / 60 Hz
Power Consumption Average use : 133 W (0.78 A) (TX-26LXD52)
Average use : 169 W (0.98 A) (TX-32LXD52)
Standby condition :
0.4 W (Without DVB Timer programmes)
16W (With DVB Timer programmes)
Average use : 126 W (TX-26LX52F/L, TX-26LX51F)
Average use : 161 W (TX-32LX52F/L, TX-32LX51F)
Standby condition : 0.4 W
LCD Wide XGA (1,366 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
