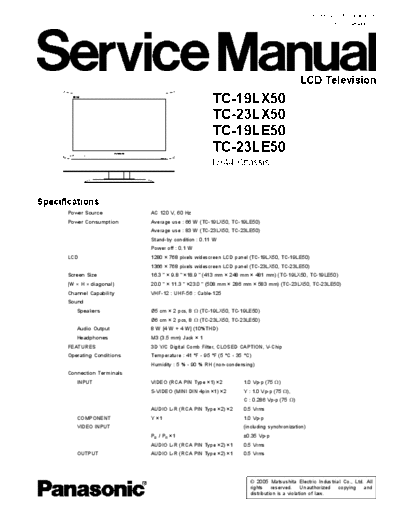

Image preview - the first page of the document
LH44 TC-19LX50 TC-23LX50 TC-19LE50 TC-23LE50


>> Download LH44 TC-19LX50 TC-23LX50 TC-19LE50 TC-23LE50 documenatation <<

Text preview - extract from the document
                                                                                                 ORDER NO. ITD0503010CE
                                                                                                       B05    Canada:B07




                                                                                           LCD Television
                                                      TC-19LX50
                                                      TC-23LX50
                                                      TC-19LE50
                                                      TC-23LE50
                                                      LH44 Chassis



Specifications
      Power Source           AC 120 V, 60 Hz
      Power Consumption      Average use : 66 W (TC-19LX50, TC-19LE50)
                             Average use : 83 W (TC-23LX50, TC-23LE50)
                             Stand-by condition : 0.11 W
                             Power off : 0.1 W
      LCD                    1280
