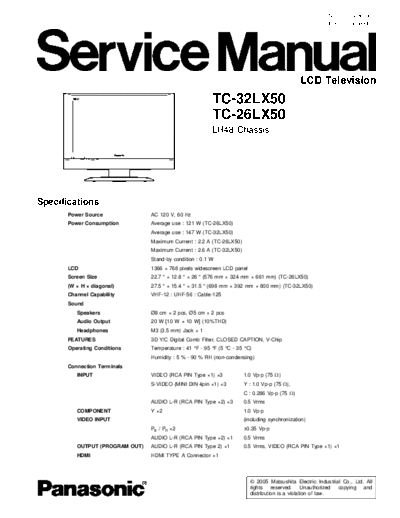

Image preview - the first page of the document
LH48 TC-32LX50 TC-26LX50


>> Download LH48 TC-32LX50 TC-26LX50 documenatation <<

Text preview - extract from the document
                                                                                                    ORDER NO. ITD0503009CE
                                                                                                          B05    Canada:B07




                                                                                              LCD Television
                                                         TC-32LX50
                                                         TC-26LX50
                                                         LH48 Chassis




Specifications
      Power Source              AC 120 V, 60 Hz
      Power Consumption         Average use : 121 W (TC-26LX50)
                                Average use : 147 W (TC-32LX50)
                                Maximum Current : 2.2 A (TC-26LX50)
                                Maximum Current : 2.6 A (TC-32LX50)
                                Stand-by condition : 0.1 W
      LCD                       1366
