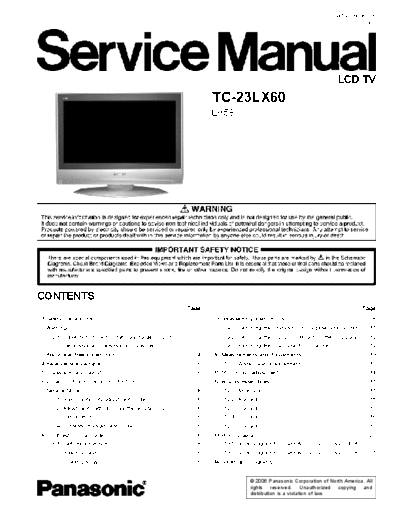

Image preview - the first page of the document
>> Download LH58 TC-23LX60 documenatation <<
Text preview - extract from the document
MTNC060587CE
B05
LCD TV
TC-23LX60
LH58
CONTENTS
Page Page
1 Safety precautions 3 9 Disassembly Instructions 8
2 Warning 3 9.1. Removing the Chassis fromLCD panel and cabinet 11
2.1. Prevention of Electro Static Discharge (ESD) to 9.2. Removing the LCD L/R/B MTG from the LCD panel 12
Electrostatically Sensitive (ES) Devices 3 9.3. Removing the LCD panel from Cabinet 12
3 About lead free solder (PbF) 4 10 Measurements and Adjustments 13
4 Receiver feature table 5 10.1. White Balance Adjustment 13
5 Chassis Board Layout 6 11 MTS circuit adjustment 14
6 Location of controls (EUR7613Z90R) 7 12 Boards Assemblies 15
7 Service Mode 8 12.1. AP-Board 15
7.1. How to enter into adjustment mode 8 12.2. A-Board 16
7.2. Adjustment method.....Use the remote control. 8 12.3. P-Board 17
7.3. Cancellation 8 12.4. K-Board 18
7.4. Contents of adjustment mode 8 12.5. V-Board 19
8 Troubleshooting Guide 8 13 Block Diagram 20
8.1. Self-check function 8 13.1. Block Diagram for P and AP (DC-DC CONV.) (1 of 2) 20
8.2. How to access 8 13.2. Block Diagram for P and AP (DC-DC CONV.) (2 of 2) 21
8.3. Screen Display 8 14 Schematic Diagrams 22
