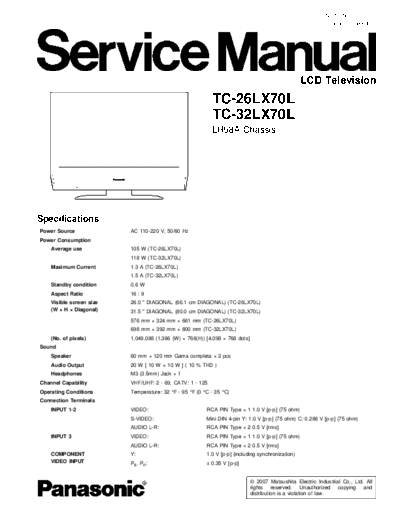

Image preview - the first page of the document
LH58A TC-26LX70L TC-32LX70L


>> Download LH58A TC-26LX70L TC-32LX70L documenatation <<

Text preview - extract from the document
                                                                                                    ORDER NO.MTNC070521CE
                                                                                                             B05 Canada: B07




                                                                                                   LCD Television
                                                           TC-26LX70L
                                                           TC-32LX70L
                                                           LH58A Chassis




Specifications
Power Source              AC 110-220 V, 50/60 Hz
Power Consumption
    Average use           105 W (TC-26LX70L)
                          118 W (TC-32LX70L)
    Maximum Current       1.3 A (TC-26LX70L)
                          1.5 A (TC-32LX70L)
    Standby condition     0.6 W
    Aspect Ratio          16 : 9
    Visible screen size   26.0 " DIAGONAL (66.1 cm DIAGONAL) (TC-26LX70L)
