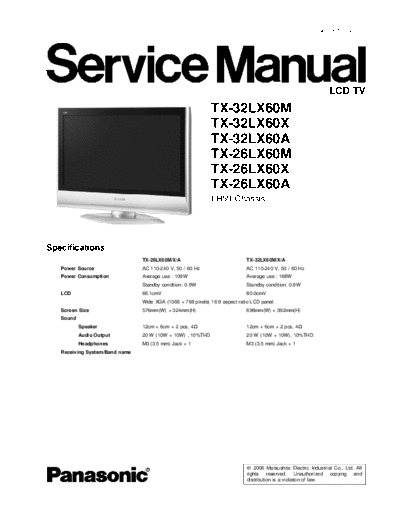

Image preview - the first page of the document
>> Download LH59 TX-32LX60M TX-32LX60X TX-32LX60A TX-26LX60M TX-26LX60X TX-26LX60A documenatation <<
Text preview - extract from the document
ORDER NO. SMT0603006CE
LCD TV
TX-32LX60M
TX-32LX60X
TX-32LX60A
TX-26LX60M
TX-26LX60X
TX-26LX60A
LH59 Chassis
Specifications
TX-26LX60M/X/A TX-32LX60M/X/A
Power Source AC 110-240 V, 50 / 60 Hz AC 110-240 V, 50 / 60 Hz
Power Consumption Average use : 109W Average use : 168W
Standby condition: 0.9W Standby condition: 0.9W
LCD 66.1cmV 80.0cmV
Wide XGA (1366 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
